Product Description
Konig Heliogram - Matte Bronze - Flow Formed

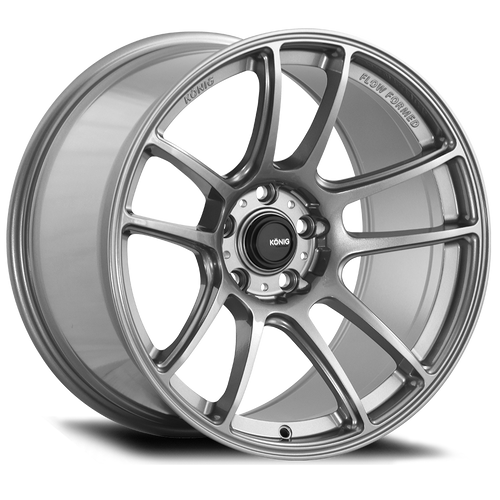

The HELIOGRAM is a NEW split 5-spoke, motorsport inspired design that is built with flow forming technology. The Heliogram has a knurl bead seat to prevent tire slippage for high-torque motorsports applications. Offered in both, Titanium Metallic and Matte Bronze finishes with available sizing in 15×7, 15×8, 15×9, 16×8, 17×8.5, 17×9, 18×8.5, 18×9.5, 18×10.5, 18×12, 19×9.5, 19×10, 19×10.5, and 19×11″ with high and low offsets available.
| Konig Part# | Size | PCD | Offset (mm) | Finish | Center Bore | Construction | Load Rating | Net Weight (lb) | Notes |
|---|---|---|---|---|---|---|---|---|---|
| HL75100358 | 15x7 | 4x100 | 35 | MATTE BRONZE | 73.1 | FLOW FORMED | 1102 | 11.68 | KNURLED BEAD SEATS |
| HL7510035T | 15x7 | 4x100 | 35 | TITANIUM METALLIC | 73.1 | FLOW FORMED | 1102 | 11.68 | KNURLED BEAD SEATS |
| HL85100368 | 15x8 | 4x100 | 36 | MATTE BRONZE | 73.1 | FLOW FORMED | 1213 | 12.34 | KNURLED BEAD SEATS |
| HL8510036T | 15x8 | 4x100 | 36 | TITANIUM METALLIC | 73.1 | FLOW FORMED | 1213 | 12.34 | KNURLED BEAD SEATS |
| HL95100358 | 15x9 | 4x100 | 35 | MATTE BRONZE | 73.1 | FLOW FORMED | 1213 | 13 | KNURLED BEAD SEATS |
| HL86100388 | 16x8 | 4x100 | 38 | MATTE BRONZE | 73.1 | FLOW FORMED | 1213 | 15.38 | KNURLED BEAD SEATS |
| HL8610038T | 16x8 | 4x100 | 38 | TITANIUM METALLIC | 73.1 | FLOW FORMED | 1213 | 15.38 | KNURLED BEAD SEATS |
| HL86108408 | 16x8 | 4x108 | 40 | MATTE BRONZE | 73.1 | FLOW FORMED | 1213 | 15.38 | KNURLED BEAD SEATS |
| HL8610840T | 16x8 | 4x108 | 40 | TITANIUM METALLIC | 73.1 | FLOW FORMED | 1213 | 15.38 | KNURLED BEAD SEATS |
| HL86514388 | 16x8 | 5X114.3 | 38 | MATTE BRONZE | 73.1 | FLOW FORMED | 1543 | 15.38 | KNURLED BEAD SEATS |
| HL8651438T | 16x8 | 5X114.3 | 38 | TITANIUM METALLIC | 73.1 | FLOW FORMED | 1543 | 15.38 | KNURLED BEAD SEATS |
| HL87100458 | 17x8.5 | 4x100 | 45 | MATTE BRONZE | 73.1 | FLOW FORMED | 1213 | 17.58 | KNURLED BEAD SEATS |
| HL8710045T | 17x8.5 | 4x100 | 45 | TITANIUM METALLIC | 73.1 | FLOW FORMED | 1213 | 17.58 | KNURLED BEAD SEATS |
| HL87510388 | 17x8.5 | 5x100 | 38 | MATTE BRONZE | 73.1 | FLOW FORMED | 1433 | 17.58 | KNURLED BEAD SEATS |
| HL8751242T | 17x8.5 | 5x112 | 42 | TITANIUM METALLIC | 66.6 | FLOW FORMED | 1521 | 17.58 | KNURLED BEAD SEATS |
| HL87514388 | 17x8.5 | 5x114.3 | 38 | MATTE BRONZE | 73.1 | FLOW FORMED | 1543 | 17.58 | KNURLED BEAD SEATS |
| HL8751438T | 17x8.5 | 5x114.3 | 38 | TITANIUM METALLIC | 73.1 | FLOW FORMED | 1543 | 17.58 | KNURLED BEAD SEATS |
| HL97514258 | 17x9 | 5x114.3 | 25 | MATTE BRONZE | 73.1 | FLOW FORMED | 1543 | 18.07 | KNURLED BEAD SEATS |
| HL9751425T | 17x9 | 5x114.3 | 25 | TITANIUM METALLIC | 73.1 | FLOW FORMED | 1543 | 18.07 | KNURLED BEAD SEATS |
| HL97514388 | 17x9 | 5x114.3 | 38 | MATTE BRONZE | 73.1 | FLOW FORMED | 1543 | 18.07 | KNURLED BEAD SEATS |
| HL9751438T | 17x9 | 5x114.3 | 38 | TITANIUM METALLIC | 73.1 | FLOW FORMED | 1543 | 18.07 | KNURLED BEAD SEATS |
| HL88508428 | 18x8.5 | 5X108 | 42 | MATTE BRONZE | 73.1 | FLOW FORMED | 1521 | 18.57 | KNURLED BEAD SEATS |
| HL8850842T | 18x8.5 | 5X108 | 42 | TITANIUM METALLIC | 73.1 | FLOW FORMED | 1521 | 18.57 | KNURLED BEAD SEATS |
| HL8851232T | 18x8.5 | 5X112 | 32 | TITANIUM METALLIC | 66.6 | FLOW FORMED | 1543 | 18.57 | KNURLED BEAD SEATS |
| HL88512428 | 18x8.5 | 5X112 | 42 | MATTE BRONZE | 66.6 | FLOW FORMED | 1543 | 18.57 | KNURLED BEAD SEATS |
| HL8851242T | 18x8.5 | 5X112 | 42 | TITANIUM METALLIC | 66.6 | FLOW FORMED | 1543 | 18.57 | KNURLED BEAD SEATS |
| HL88514328 | 18x8.5 | 5X114.3 | 32 | MATTE BRONZE | 73.1 | FLOW FORMED | 1543 | 18.57 | KNURLED BEAD SEATS |
| HL8851432T | 18x8.5 | 5X114.3 | 32 | TITANIUM METALLIC | 73.1 | FLOW FORMED | 1543 | 18.57 | KNURLED BEAD SEATS |
| HL88514428 | 18x8.5 | 5X114.3 | 42 | MATTE BRONZE | 73.1 | FLOW FORMED | 1543 | 18.57 | KNURLED BEAD SEATS |
| HL8851442T | 18x8.5 | 5X114.3 | 42 | TITANIUM METALLIC | 73.1 | FLOW FORMED | 1543 | 18.57 | KNURLED BEAD SEATS |
| HL8852032T | 18x8.5 | 5X120 | 32 | TITANIUM METALLIC | 72.6 | FLOW FORMED | 1543 | 18.57 | KNURLED BEAD SEATS |
| HL9851235T | 18x9.5A | 5x112 | 35 | TITANIUM METALLIC | 66.6 | FLOW FORMED | 1543 | 19.67 | KNURLED BEAD SEATS |
| HL98514258 | 18x9.5A | 5X114.3 | 25 | MATTE BRONZE | 73.1 | FLOW FORMED | 1543 | 19.94 | KNURLED BEAD SEATS |
| HL9851425T | 18x9.5A | 5X114.3 | 25 | TITANIUM METALLIC | 73.1 | FLOW FORMED | 1543 | 19.94 | KNURLED BEAD SEATS |
| HL98514358 | 18x9.5A | 5X114.3 | 35 | MATTE BRONZE | 73.1 | FLOW FORMED | 1543 | 19.67 | KNURLED BEAD SEATS |
| HL9851435T | 18x9.5A | 5X114.3 | 35 | TITANIUM METALLIC | 73.1 | FLOW FORMED | 1543 | 19.94 | KNURLED BEAD SEATS |
| HL9852035T | 18x9.5A | 5X120 | 35 | TITANIUM METALLIC | 72.6 | FLOW FORMED | 1543 | 19.67 | KNURLED BEAD SEATS |
| HL98520388 | 18x9.5A | 5X120 | 38 | MATTE BRONZE | 72.6 | FLOW FORMED | 1543 | 19.67 | KNURLED BEAD SEATS |
| HL08514188 | 18x10.5B | 5x114.3 | 18 | MATTE BRONZE | 73.1 | FLOW FORMED | 1543 | 20.49 | KNURLED BEAD SEATS |
| HL0851418T | 18x10.5B | 5x114.3 | 18 | TITANIUM METALLIC | 73.1 | FLOW FORMED | 1543 | 20.49 | KNURLED BEAD SEATS |
| HL28514208 | 18x12B | 5x114.3 | 20 | MATTE BRONZE | 73.1 | FLOW FORMED | 1543 | 21.9 | KNURLED BEAD SEATS |
| HL2851420T | 18x12B | 5x114.3 | 20 | TITANIUM METALLIC | 73.1 | FLOW FORMED | 1543 | 21.9 | KNURLED BEAD SEATS |
| HL8951232T | 19x8.5 | 5x112 | 32 | TITANIUM METALLIC | 66.6 | FLOW FORMED | 1543 | 20.78 | KNURLED BEAD SEATS |
| HL8951243T | 19x8.5 | 5X112 | 43 | TITANIUM METALLIC | 66.6 | FLOW FORMED | 1543 | 20.78 | KNURLED BEAD SEATS |
| HL89514328 | 19x8.5 | 5X114.3 | 32 | MATTE BRONZE | 73.1 | FLOW FORMED | 1543 | 20.78 | KNURLED BEAD SEATS |
| HL8951432T | 19x8.5 | 5X114.3 | 32 | TITANIUM METALLIC | 73.1 | FLOW FORMED | 1543 | 20.78 | KNURLED BEAD SEATS |
| HL89514428 | 19x8.5 | 5X114.3 | 42 | MATTE BRONZE | 73.1 | FLOW FORMED | 1543 | 20.78 | KNURLED BEAD SEATS |
| HL8951442T | 19x8.5 | 5X114.3 | 42 | TITANIUM METALLIC | 73.1 | FLOW FORMED | 1543 | 20.78 | KNURLED BEAD SEATS |
| HL99514258 | 19x9.5A | 5X114.3 | 25 | MATTE BRONZE | 73.1 | FLOW FORMED | 1543 | 21.98 | KNURLED BEAD SEATS |
| HL9951425T | 19x9.5A | 5X114.3 | 25 | TITANIUM METALLIC | 73.1 | FLOW FORMED | 1543 | 21.98 | KNURLED BEAD SEATS |
| HL99514358 | 19x9.5A | 5X114.3 | 35 | MATTE BRONZE | 73.1 | FLOW FORMED | 1543 | 21.66 | KNURLED BEAD SEATS |
| HL9951435T | 19x9.5A | 5X114.3 | 35 | TITANIUM METALLIC | 73.1 | FLOW FORMED | 1543 | 21.66 | KNURLED BEAD SEATS |
| HL09514258 | 19x10.5B | 5x114.3 | 25 | MATTE BRONZE | 73.1 | FLOW FORMED | 1543 | 23.1 | KNURLED BEAD SEATS |
| HL0951425T | 19x10.5B | 5x114.3 | 25 | TITANIUM METALLIC | 73.1 | FLOW FORMED | 1543 | 23.1 | KNURLED BEAD SEATS |
