Product Description
CJM Industries V2 Chassis Mounted Front Splitter w/ Air Dam for 8V.5 S3 Facelift
All sales are final, no returns or refunds. This item does not qualify for free shipping. This product ships in 3-5 business days. Made in USA - 2 year warranty.
Please read these product details thoroughly for fitment and installation requirements. This can be completed in a driveway with basic tools. Please review the install sheet and tool list to understand what is involved in the process. Professional install recommended if you are not comfortable removing the front crash bar.
- Brackets & rods come in raw aluminum, expect some visible imperfections in the material from the cutting and bending process.
- This will not fit with any front mount/twin intercooler.
- If you are on air ride, do not air-out onto these brackets, they are not designed to support the weight of an entire vehicle.
- Requires drilling four 11mm holes in the crash bar for install.
- Trimming of the factory lower splash guard and aux cooler ducting is required (not the bumper).

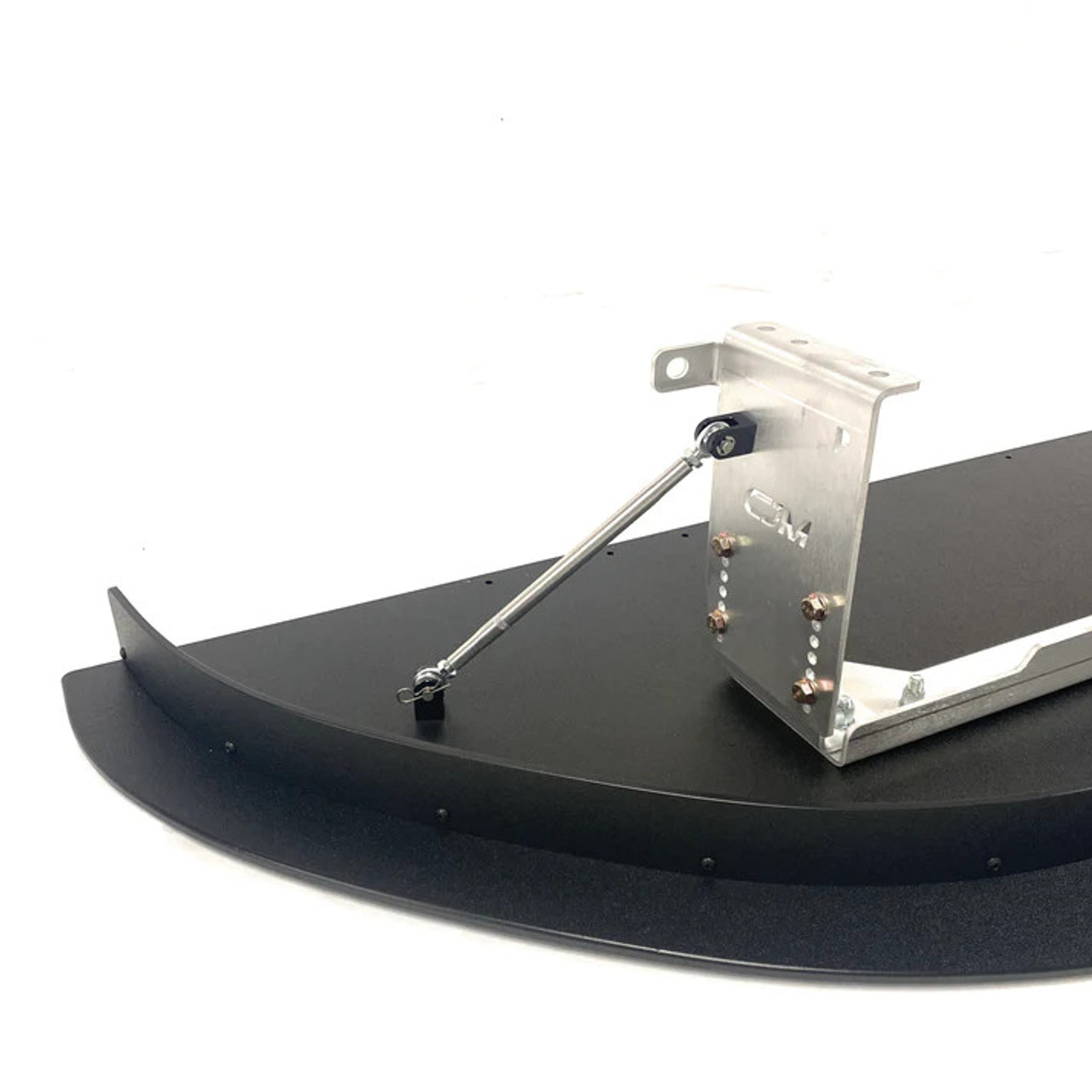

- Brackets are made of 5052 Aluminum, these mount to 6 points of the chassis/crash bar to hold the splitter blade.
- The brackets and rods are raw aluminum and contain zinc coated steel hardware.
- If you are in a region that salts the roads in the winter, this will increase the need to clean and maintain each component more frequently. We can apply a clear coating called Sharkhide if requested, but it will not last forever, you will need to recoat them over time to If you want to prevent discoloration over time. We can also powder coat them, or you can paint with a rattle can for easier maintenance.
Each Order includes:
- Top Driver & Passenger side Bracket
- 2x bottom Brackets with pre-installed rivnuts for the lip/blade
- Center support brace with pre-installed rivnuts for the lip/blade
- Flange head bolts and nylock hardware for adjustable height settings
- M10 Flange head bolts and nylock hardware to mount to the Chassis.
- M10 countersunk hardware to attach a blade to brackets (3/8" or thinner blade)
- Blade - 9mm thick - black textured UV resistant plastic with a radiused edge and pre drilled countersunk holes and an air dam that contours to the lower edge of the bumper.

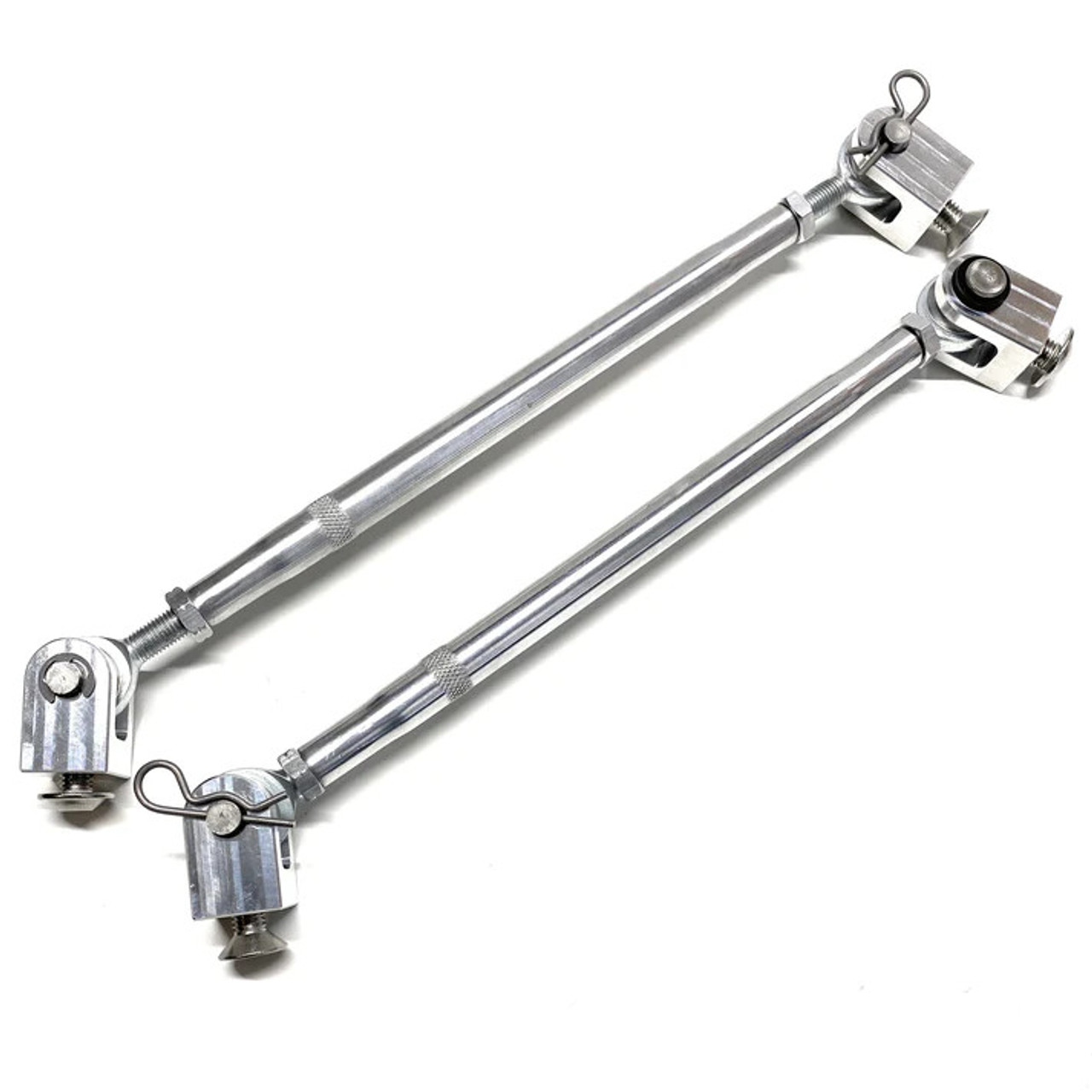

- Side support rods - Aluminum rods, coated steel heims, stainless hardware. These are strongly recommended for all blades except carbon fiber.
- Printed Install Sheet with pictures
- Template to trim plastic splash guard
Add on options (not included):
- Drill bit - 11mm step bit & 4mm pilot bit
Weights -
full assembly - 35lbs
Blades ship in a 24"x72"x5" box
Disclaimer - Off road use only, not intended to be used on public roads. This product may alter the handling of the vehicle. The buyer is responsible for all modifications made to your car. CJM Industries llc & It's Not Stock LLC assumes no responsibility or liability as a result from altering your car with our products. This product may not comply with Federal, State, Province, and/or Local laws, ordinances, and regulations. Buyer takes all responsibility to conform to all applicable laws and regulations for road use, especially pertaining to safety.
