  • *Generic photo - Not exact product shown*
  • *Generic photo - Not exact product shown*

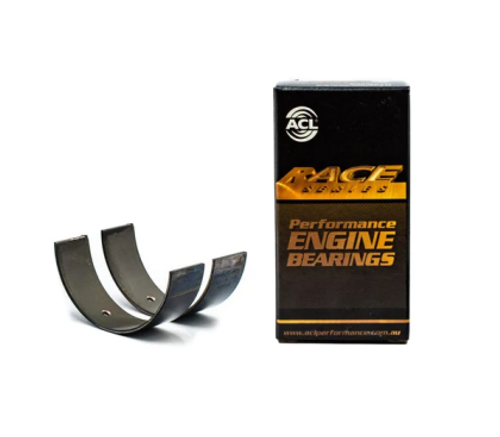

    • ACL Race Series Main Bearings for EA888 Gen 3 2.0T - Standard Size

    MSRP: $231.66
    Was: $148.99
    Sale: $134.99
    (You save $96.67 )
    SKU:
    5M5585H-STD
    Availability:
    Usually ships in 1-2 days from supplier
    Adding to cart… category.add_cart_announcement

    Product Description

    ACL Race Series Main Bearings for EA888 Gen 3 2.0T - Standard Size

    Main Bearing - STD
    • High performance Trimetal engine bearings
    • Designed to withstand higher RPM conditions
    • High strength overlay plate with reduced thickness for improved fatigue properties

    Overview

    • High strength overlay plate with reduced thickness for improved fatigue properties
    • Hardened steel backs on all rod bearings to improve the support of the bearing lining and assist with bearing retention in the housing.
    • Increased crush for improved bearing retention
    • Elimination of flash plating on the back of the bearings to improve heat transfer through the bearings and to maximize the grip between the bearings and its housing.
    • Increased eccentricity to compensate for bore distortion at high rpm and to assist in the formation of hydrodynamic oil films.
    • 3/4 grooved Main Bearings to optimize bearing load carrying surface area and oil flow to the conrod bearings.
    • Tight consistent wall tolerances to help you maintain consistent clearances.
    • Enlarged ID chamfers on bearing edges where required to accommodate large fillet radius on performance

    Performance Engine Bearings

    Specifications for STD size

    Sizes STD, .025, .25
    Oil Clearance
    Half Type Upper & lower
    Material F780
    Min. Std Shaft Size 51,958 mm / 2.0456 in
    Max. Std Shaft Size 51,978 mm / 2.0464 in
    Min. Std Tunnel Size 57 mm / 2.2441 in
    Max. Std Tunnel Size 57,019 mm / 2.2448 in
    Max Wall at Crown 2,505 mm / 0.0986 in
    Max Overall Length
    15,5 mm / 0.6102 in
    Notes
    Diagrams
    5585H-L (1,2,3,4,5)
    5585H-L
    5585H-U (1,2,3,4,5)
    5585H-U
