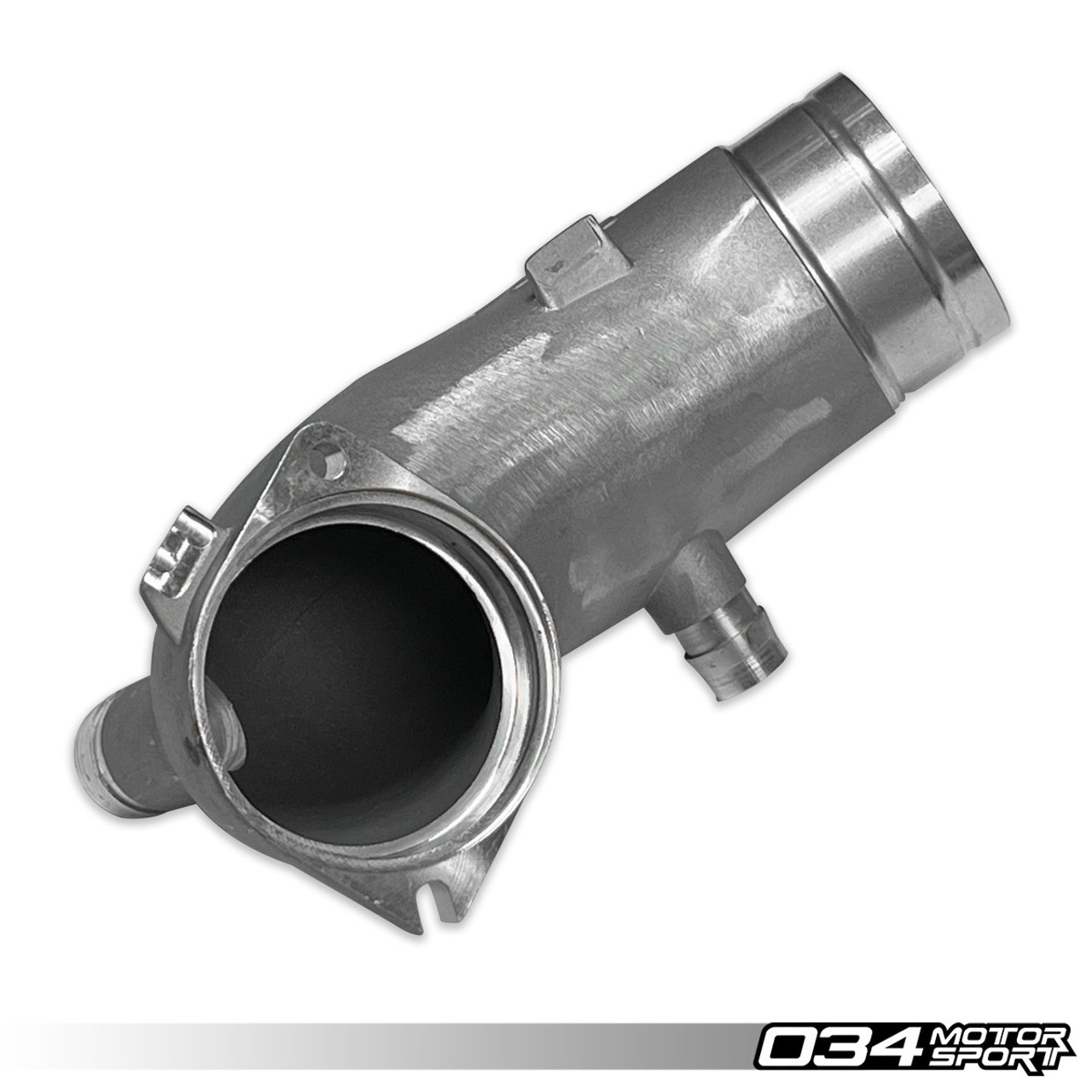

034Motorsport Turbo Inlet Pipe for B9 S4, S5 & SQ5 3.0T
The EA839 3.0T Turbo Inlet Pipe is designed to work with OEM-sized intake hoses. The CNC machined edge retains the intake hose securely to the turbo inlet pipe. The final touch is an embossed 034 logo to show unsuspecting car show attendees that you value substantive modifications on your 3.0T powered Audi.
FEATURES:
- Cast from A356 Aluminum
- Compressor Inlet Flange Adapter Machined for Smooth Airflow Into Compressor Housing
- CNC Machined 6061-T6 Aluminum Turbo Inlet Adapter to Match Turbo Inlet for Maximum Airflow - Stock Turbo - 52.0mm
- Optional Adapter ring available separately: Pure750 Turbo - 63.0mm (034-108-Z094)
- Increased Flow Over Factory Turbo Inlet
- CNC Machined Edge Retains Intake Coupler Securely
- CNC Machined to Retain OE PCV Hose
- Proven Power/Torque, and Airflow Gains
- Stock Turbo Inlet: 396 CFM @ 28"H²O
- 034 Turbo Inlet Pipe w/ Stock Turbo Adapter: 406 CFM @ 28"H²O
- 034 Turbo Inlet Pipe w/ Pure 750 Turbo Adapter: 490 CFM @ 28"H²O
- Slotted Lower Turbo Inlet Bolt for Easy Installation
- Direct Bolt-on Installation.
OE PART INTERCHANGE:
- 06M 129 665 AL
- 06M 129 041

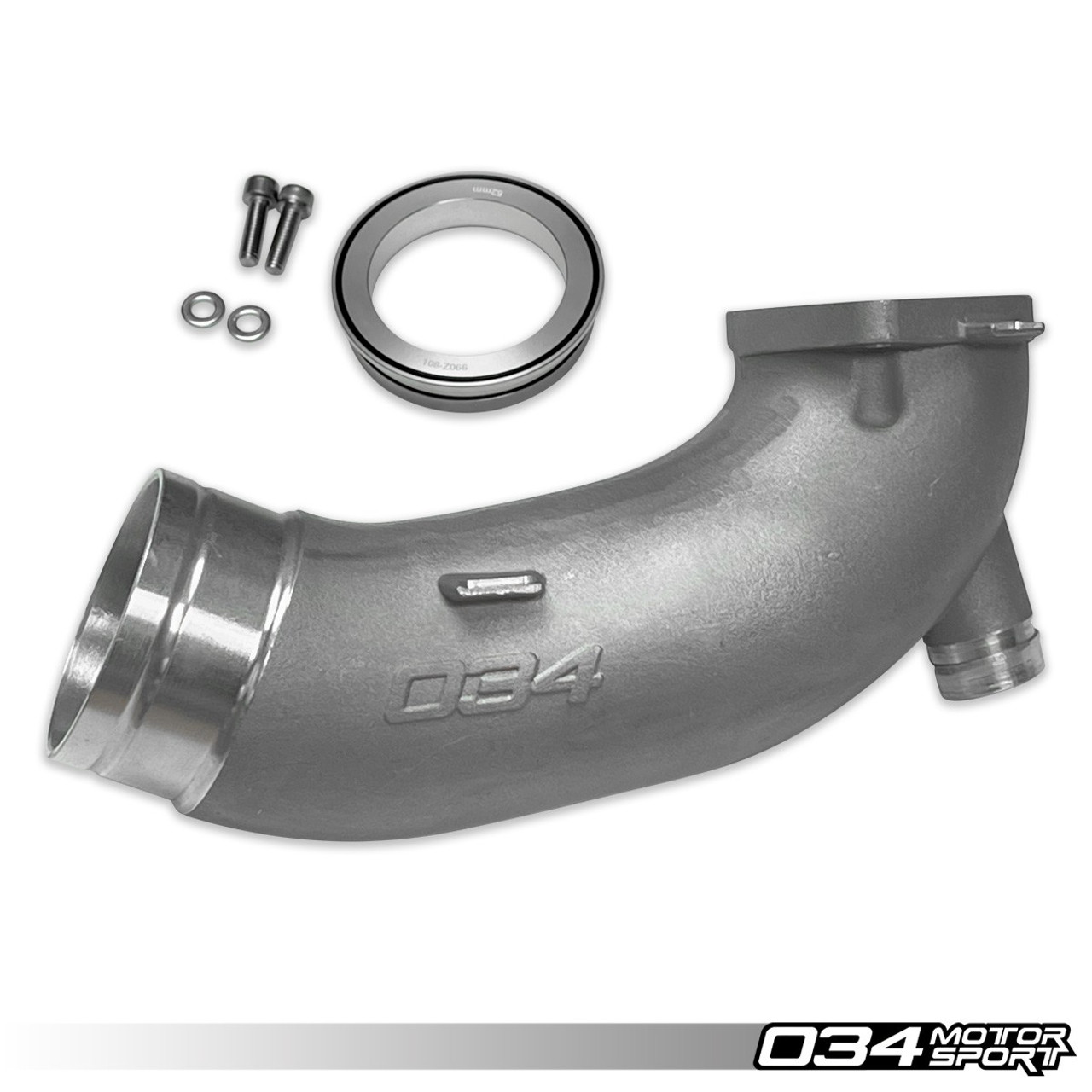

WHAT’S INCLUDED:
- Turbo Inlet Pipe

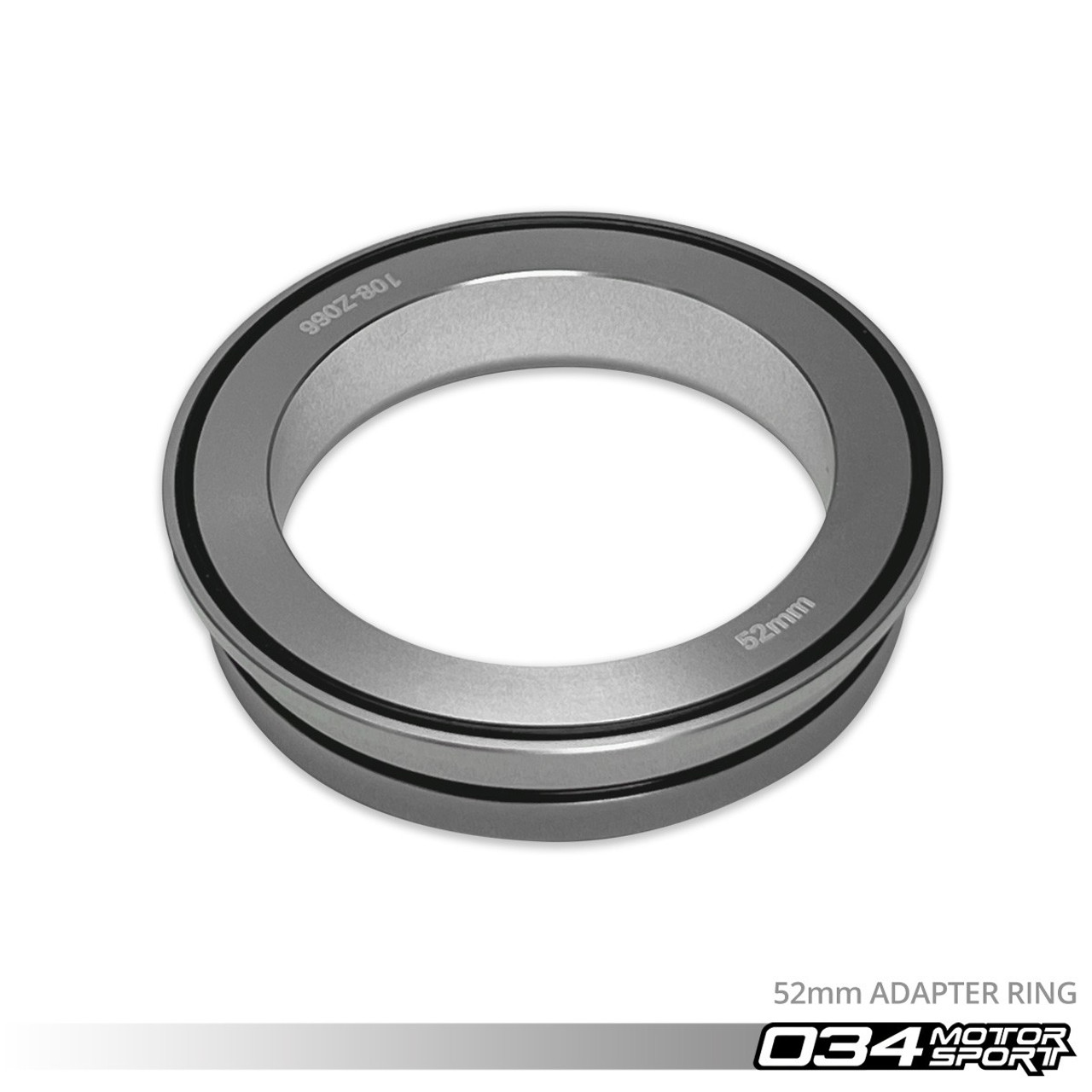

- Turbo Adapter Ring, with O-rings - 52mm for OE Turbo
