Product Description
034Motorsport Motorsport Billet Adjustable Front Sway Bar End Links for F8X M2, M3 & M4
Replace your flimsy, imprecise OEM sway bar end links with 034Motorsport performance-engineered adjustable spherical end links! 034Motorsport's Billet Adjustable Front Sway Bar End Links allow for the uncompromised transfer of suspension energy and movement to the sway bar. With its adjustable length design, the 034Motortsport Billet Adjustable Front Sway Bar End Links allow you to maintain proper preload on the sway bar when lowering your car. 034Motorsport sway bar end links are the only options on the market with high misalignment sphericals, ensuring that the end links do not bind as the suspension articulates.
This 034Motorsport Motorsport Adjustable Front Sway Bar End Link Kit has the features, performance, and maintenance-free operation to make it a winner on the street and the track!
WHAT IS SWAY BAR PRELOAD?
When a sway bar is preloaded, it means that it is already twisted when the car is at rest, and it’s trying to roll the car to one side because of this. This will lead to asymmetric behavior and the car will favor tuning one way versus the other.
Preload is detectable when the car is at ride height on a flat surface, and removal of an end link is difficult because the sway bar is already twisted and applying force on the bolt, or installing the end link is difficult because the bar needs to be twisted to insert the bolt through the hole in the sway bar. With equal-length non-adjustable sway bar end links, removing preload is not possible.
By utilizing our 034Motorsport adjustable end links, the lengths of each end link can be adjusted so that the end link can be easily installed at ride height without needing to twist the bar to get it to fit. Zero preload provides symmetrical handling in right and left turns.
FEATURES:
- CNC Machined 6061-T6 Aluminum Bodies (Anodized Black for Durability)
- Zinc Plated Steel Ball Joints

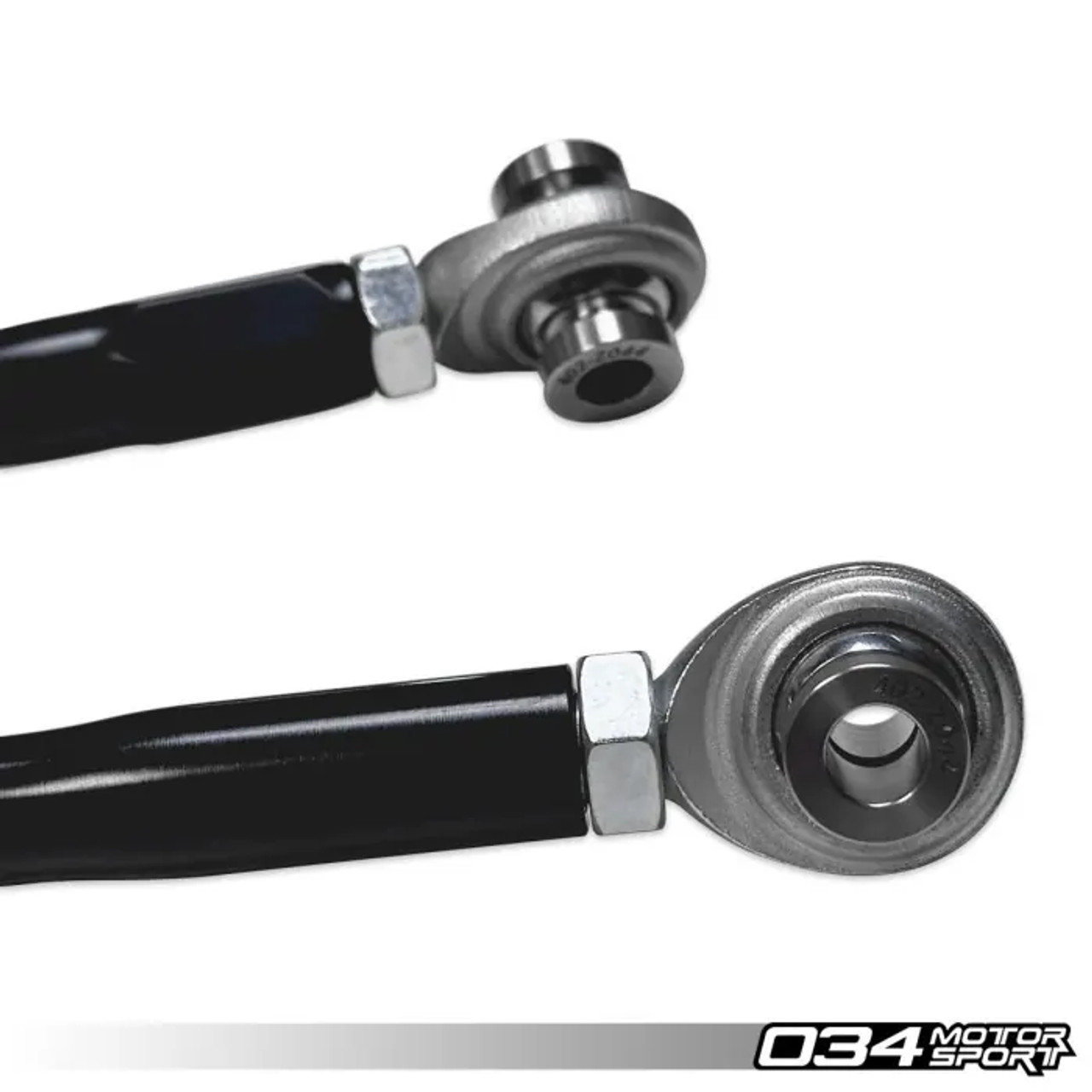

- Spherical Design Eliminates Deflection and Ensures Proper Articulation
- Motorsport Quality Aurora Spherical Bearings Featuring Self-Lubricating Teflon Race Lining
- +/- 0.75" of Adjustability (1.5" Total Adjustment Range)
- Adjust Sway Bar Preload - Essential When Corner Balancing Lowered Vehicles
- Increased Strength for Stiffer Sway Bars, Heavier Loads, and Motorsport Use
- Improved Sway Bar Reaction Time & Accuracy
- Compatible with All Stock and Aftermarket Sway Bars.
- Sold In Pairs
OE PART INTERCHANGE:
- Left: 31-30-2-284-643
- Right: 31-30-2-284-644

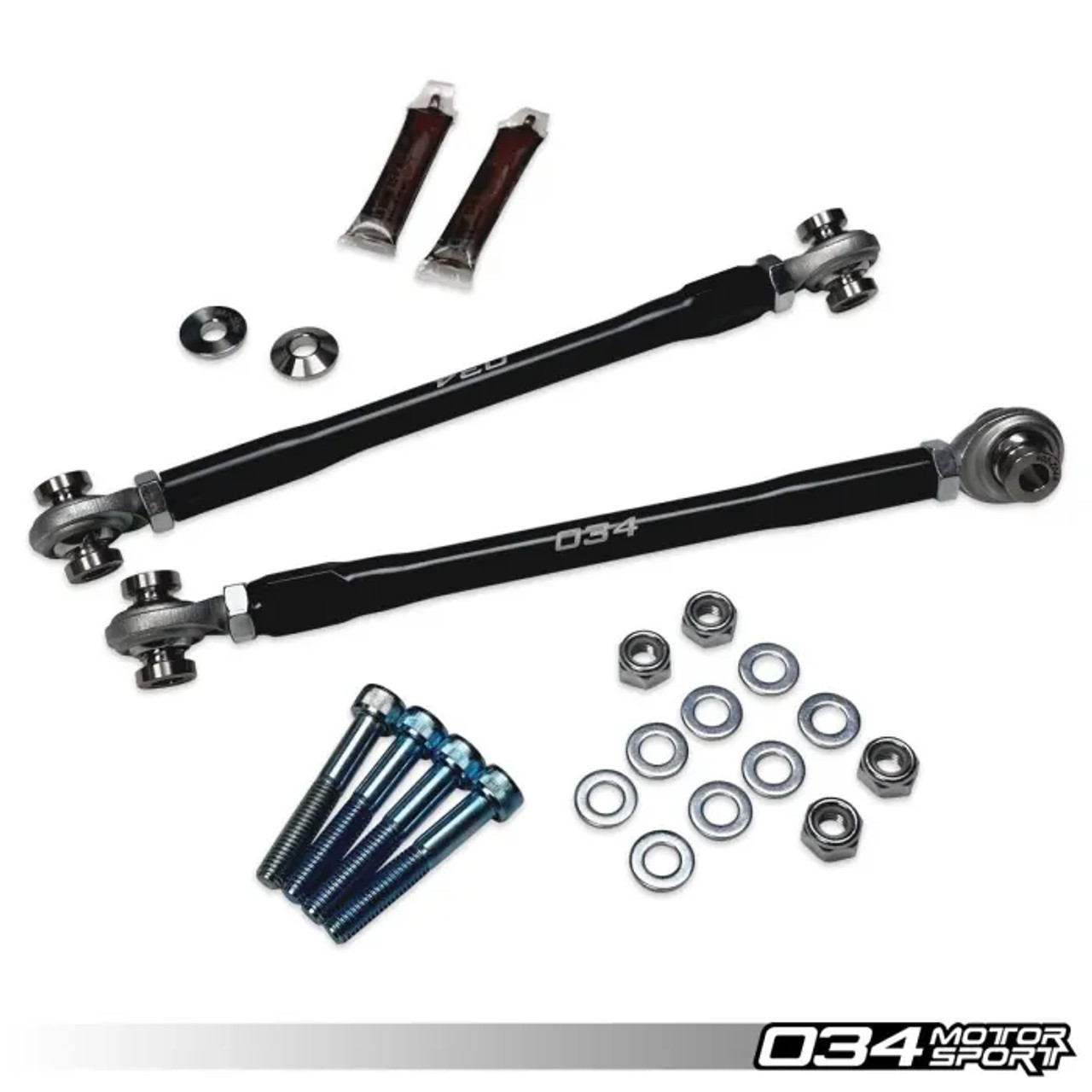

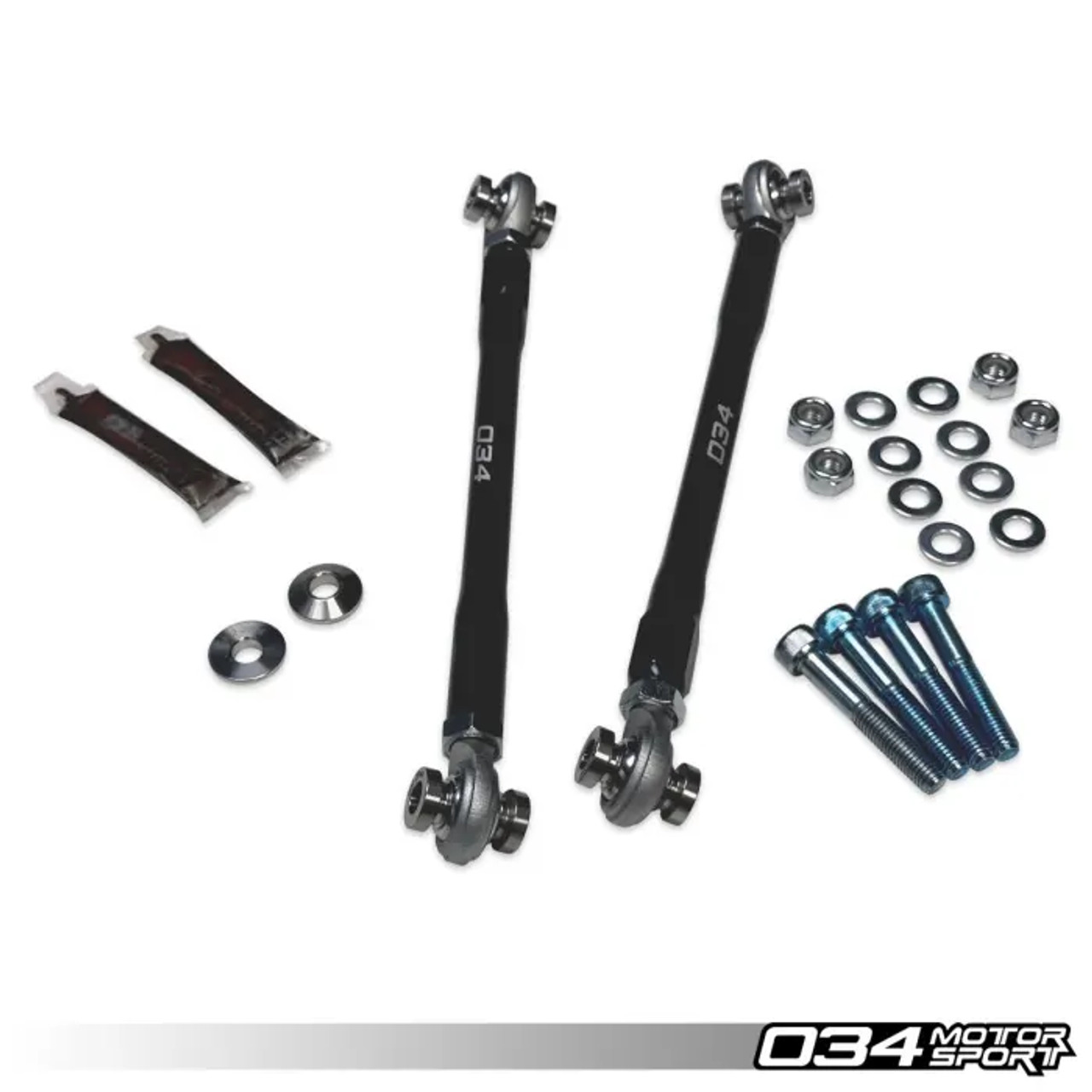

WHAT’S INCLUDED:
- 2x Billet Aluminum Adjuster Rods
- 2x Motorsport Spherical Rod Ends - RH Thread
- 2x Motorsport Spherical Rod Ends - LH Thread
- 2x Jamb Nuts - RH Thread
- 2x Jamb Nuts - LH Thread
- 8x Spacers
- Misc. Hardware
- Anti-Seize
FITMENT:
| Make | Model | Years | Chassis | Engine |
|---|---|---|---|---|
| BMW | M2 | 2016-2018 | F87 | N55 3.0L |
| BMW | M2 Competition | 2019-2021 | F87 | S55 3.0L |
| BMW | M2 CS | 2021 | F87 | S55 3.0L |
| BMW | M3 | 2015-2018 | F80 | S55 3.0L |
| BMW | M3 CS | 2017-2018 | F80 | S55 3.0L |
| BMW | M4 | 2015-2020 | F82 | S55 3.0L |
