Product Description
034Motorsport Motorsport Adjustable Front Sway Bar End Links for MK1 Audi R8
Replace your flimsy, imprecise OEM sway bar end links with these performance engineered adjustable front spherical end links from 034Motorsport for the Gen 1 & Gen 1.5 Audi R8 V8 or V10.
Designed to improve handling, road feel, and steering response, 034Motorsport's Billet Adjustable Front Sway Bar End Links allow for uncompromised transfer of suspension energy and movement to the sway bar. With its adjustable length design, the 034Motorsport Billet Adjustable Front Sway Bar end links allow for lowered vehicles to maintain proper preload on the sway bar.
Please Note: For lowered vehicles, always check all clearances over the full articulation of the suspension in order to identify possible interference. We recommend running 034Motorsport suspension components, as they have been designed and tested to work together, without interference.
PRODUCT DESCRIPTION:

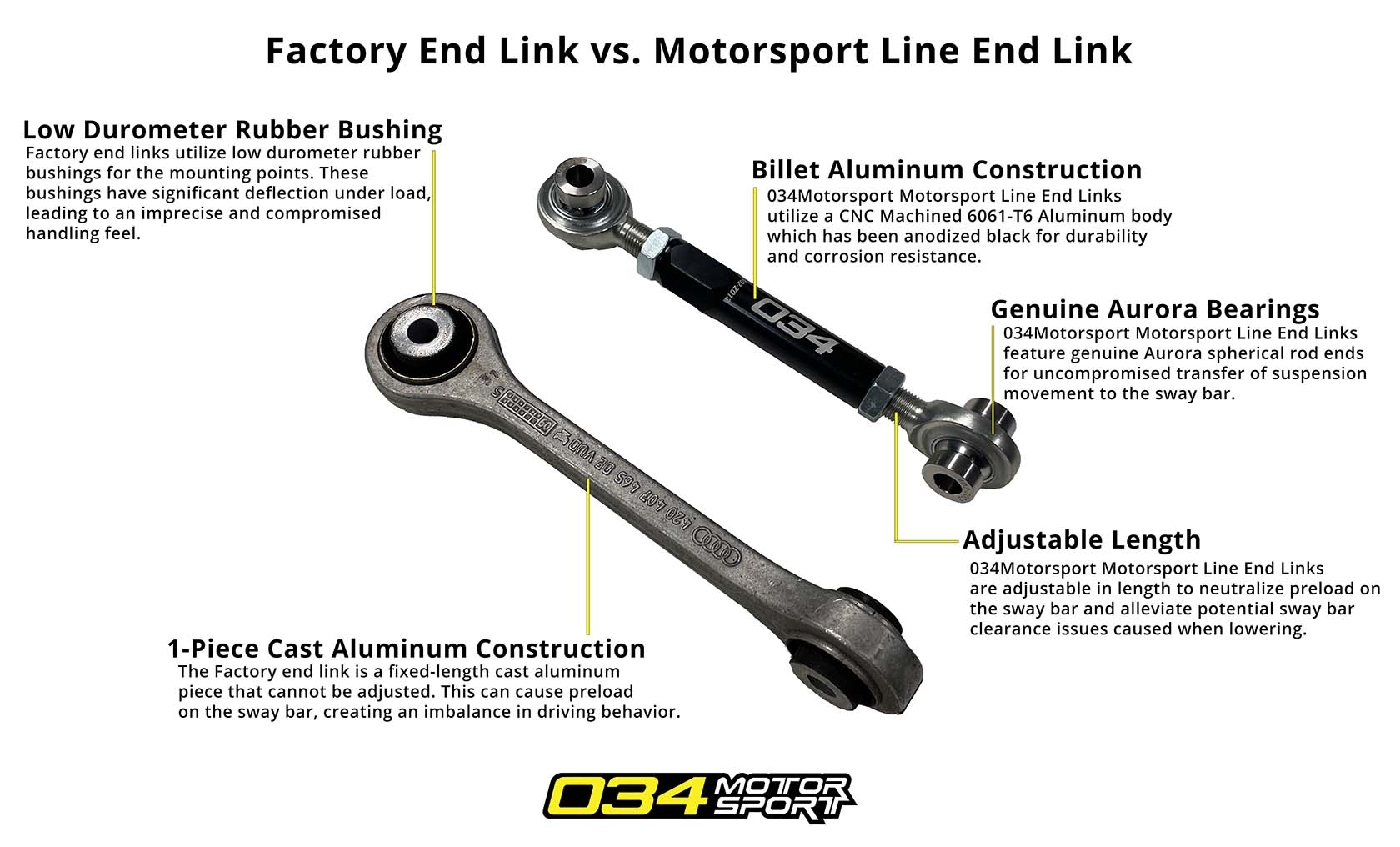

Replace your flimsy, imprecise OEM sway bar end links with these performance engineered adjustable spherical end links! The 034Motorsport's Billet Adjustable Front Sway Bar End Links allow for uncompromised transfer of suspension energy and movement to the sway bar. With its adjustable length design, the 034Motorsport Billet Adjustable Front Sway Bar end links allow you to maintain proper preload on the sway bar when lowering your car. 034Motorsport sway bar end links are the only options on the market with high misalignment sphericals, ensuring that the end links do not bind as the suspension articulates.
In addition, adjustable sway bar end links allow you to adjust preload on the sway bar, as well as alleviate potential sway bar clearance issues caused by lowering your car.
WHAT IS SWAY BAR PRELOAD?
When a sway bar is preloaded, it means that it is already twisted when the car is at rest, and it’s trying to roll the car to one side because of this. This will lead to asymmetric behaviour and the car will favor tuning one way versus the other.
Preload is detectable when the car is at ride-height on a flat surface, and removal of an end link is difficult because the sway bar is already twisted and applying force on the bolt, or installing the end link is difficult because the bar needs to be twisted to insert the bolt through the hole in the sway bar. With equal-length non-adjustable sway bar end links, removing preload is not possible.
By utilizing our 034Motorsport adjustable end links, the lengths of each end link can be adjusted so that the end link can be easily installed at ride-height without needing to twist the bar to get it to fit. Zero preload provides symmetrical handling in right and left turns.
FEATURES:
- Adjustable Length
- CNC Machined 6061-T6 Aluminum Bodies (Anodized Black for Durability)
- Aurora Spherical Rod Ends
- Motorsport Quality
- Improved Steering Response, Handling, and Road Feel
- Easy, Straightforward Installation
- Fully Rebuildable
REPLACES OE PART:
- 420 407 465
WHAT’S INCLUDED:
- Qty. 2 - Billet Aluminum Adjuster Rods
- Qty. 2 - Aurora Spherical Rod Ends - Right-Hand Thread
- Qty. 2 - Aurora Spherical Rod Ends - Left-Hand Thread
- Qty. 2 - Jam Nuts - Right-Hand Thread
- Qty. 2 - Jam Nuts - Left-Hand Thread
- Qty. 8 - Spacers
- Qty. 2 - Loctite Anti-Seize Packets
- Misc. Hardware
