Product Description
034Motorsport Insuction Bundle for MK8 Golf R & 8Y S3
THIS ITEM CAN NOT BE SHIPPED TO CALIFORNIA CUSTOMERS!

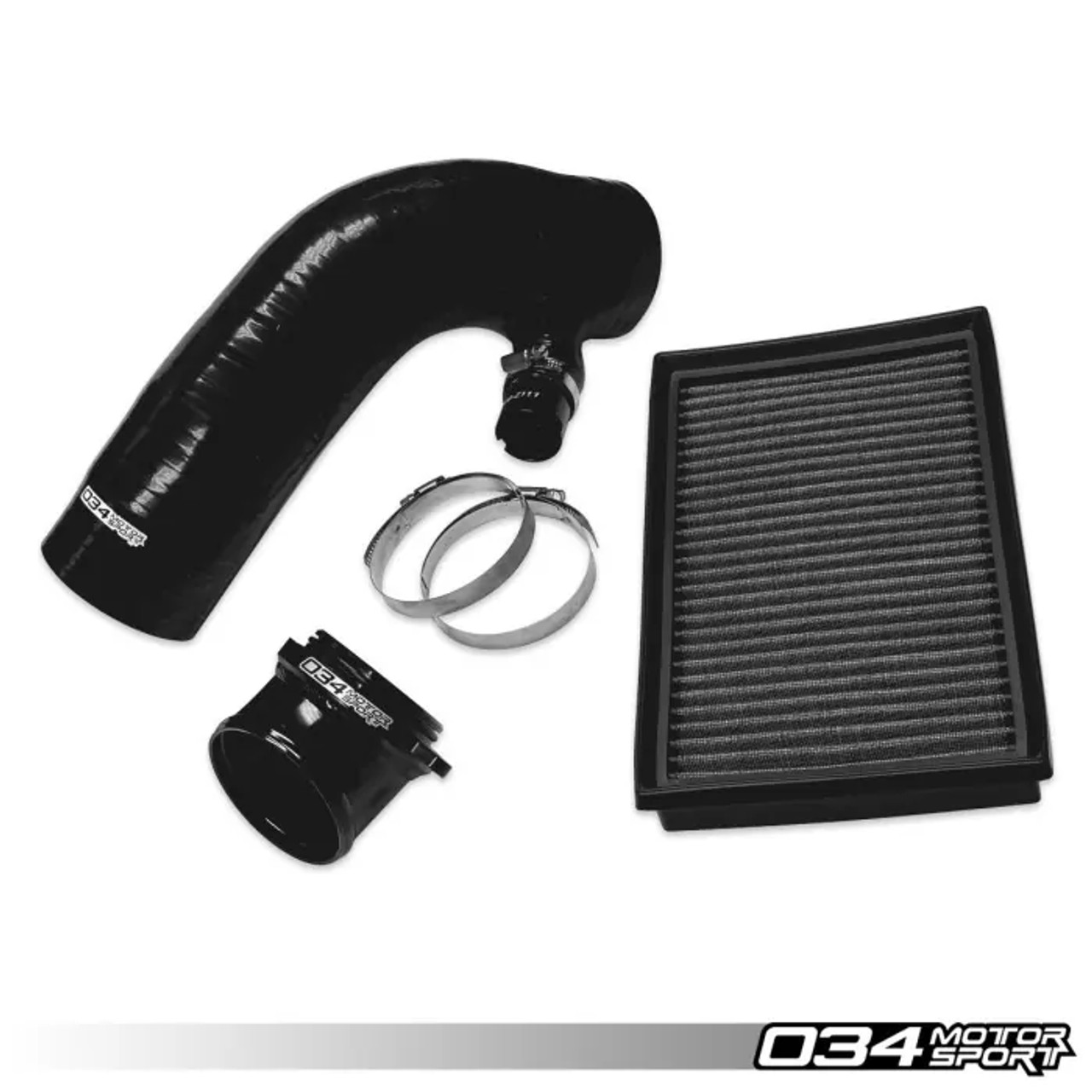

The 034Motorsport MQB Insuction Bundle for Volkswagen MK8 R and Audi 8Y S3 includes all of the 034Motorsport intake performance products associated with the OEM airbox in one comprehensive and convenient package. This kit includes the Turbo Inlet Pipe, Turbo Inlet Hose, Performance Drop-In Panel Air Filter, and all associated hardware.

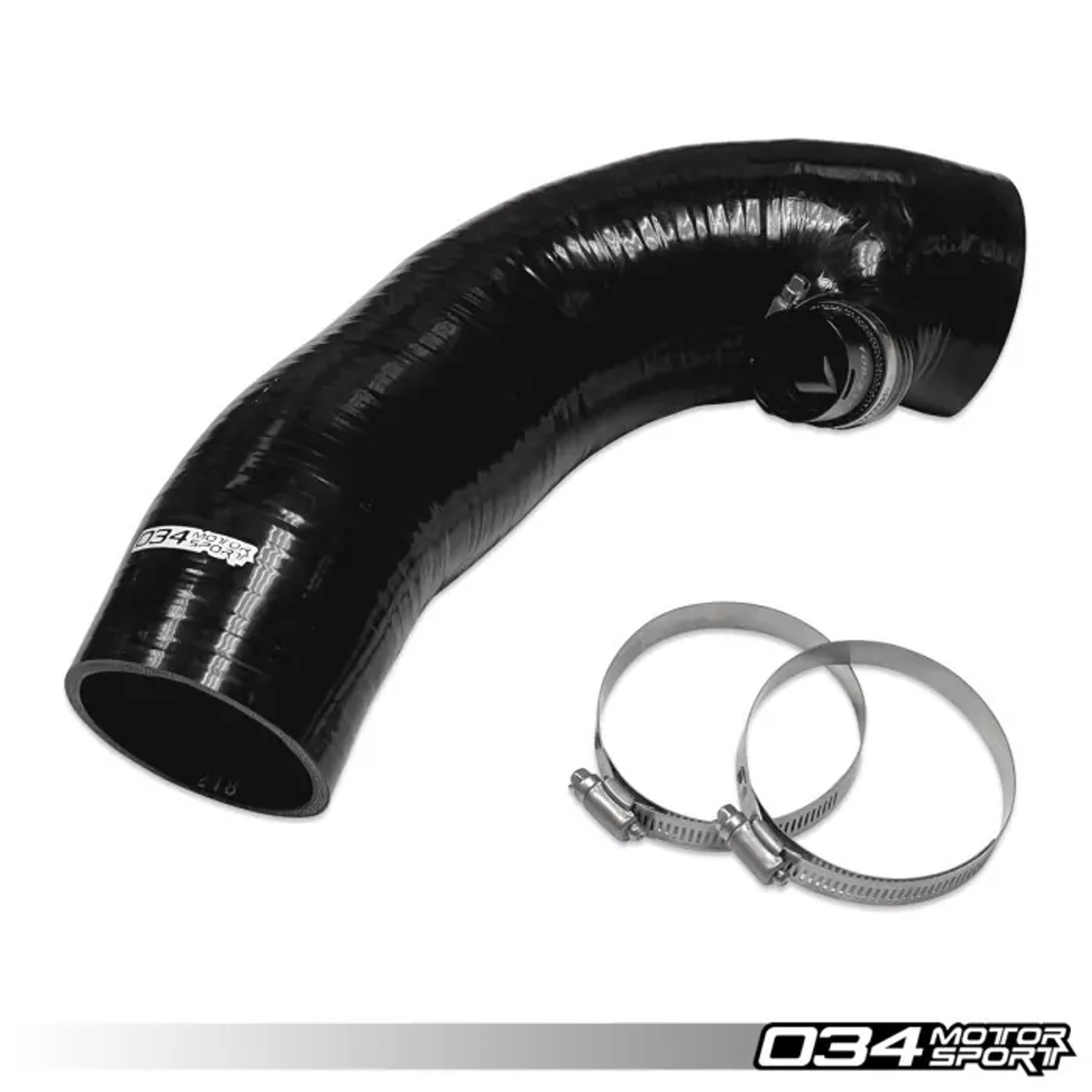

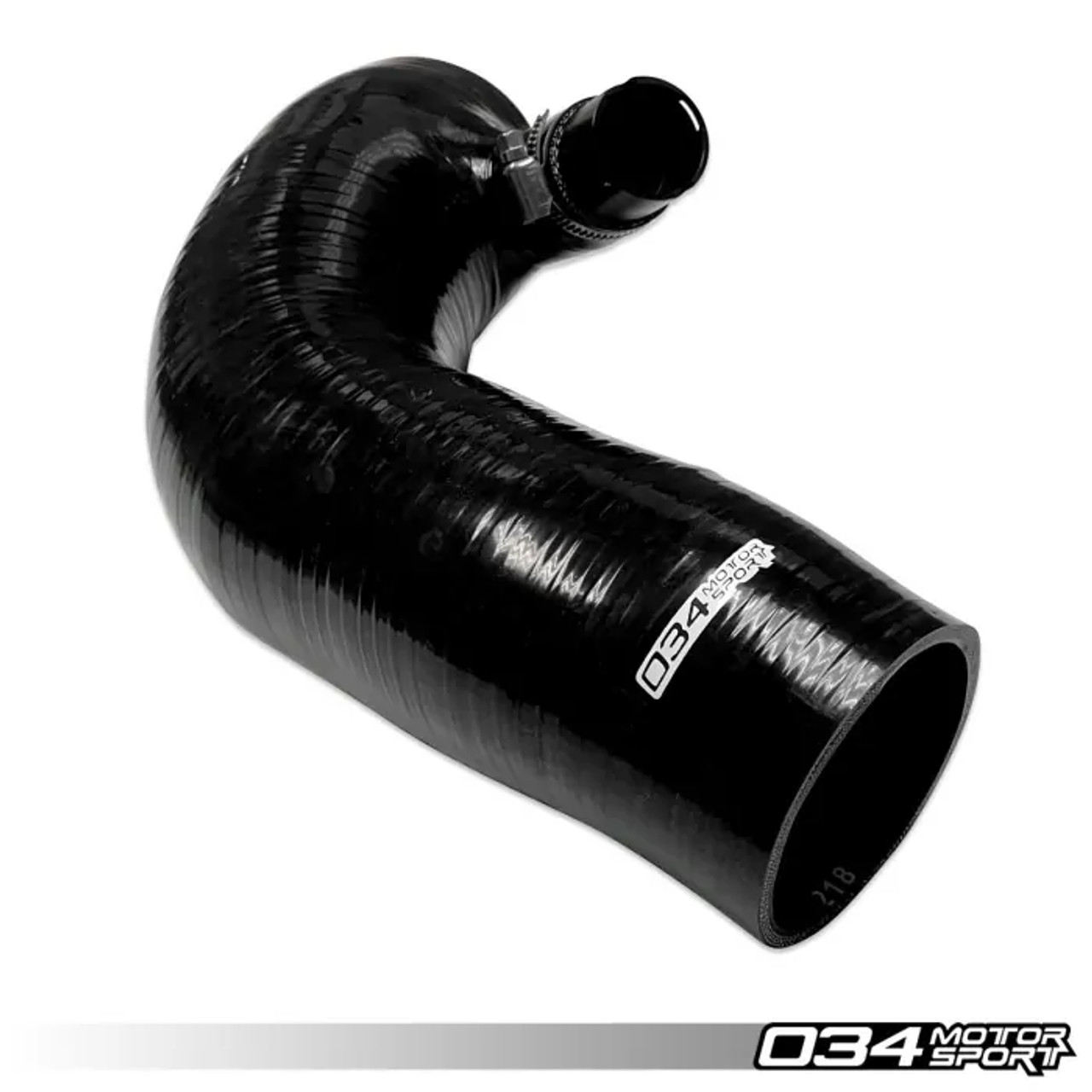

TURBO INLET HOSE:
The 034Motorsport Turbo Inlet Hose for the Volkswagen Mk8 Golf R & 8Y Audi S3 is designed to replace the unattractive and restrictive OEM corrugated plastic turbo inlet hose. The 034Motorsport Turbo Inlet Hose smoothly transitions from the intake to the turbo inlet pipe, providing increased airflow capability to support other power-improving modifications. Wire reinforcement ensures the 034Motorsport Turbo Inlet Hose retains its shape, resisting vacuum-induced collapse when turbocharger air demand is increased.
FEATURES:
- Increased Induction Sound & Improved Performance
- Wire-Reinforced Multi-Ply Silicone Construction
- Maintains Smooth Inside Surface for Optimum Flow
- Eliminates Restrictive Factory Flex Corrugation for Improved Performance

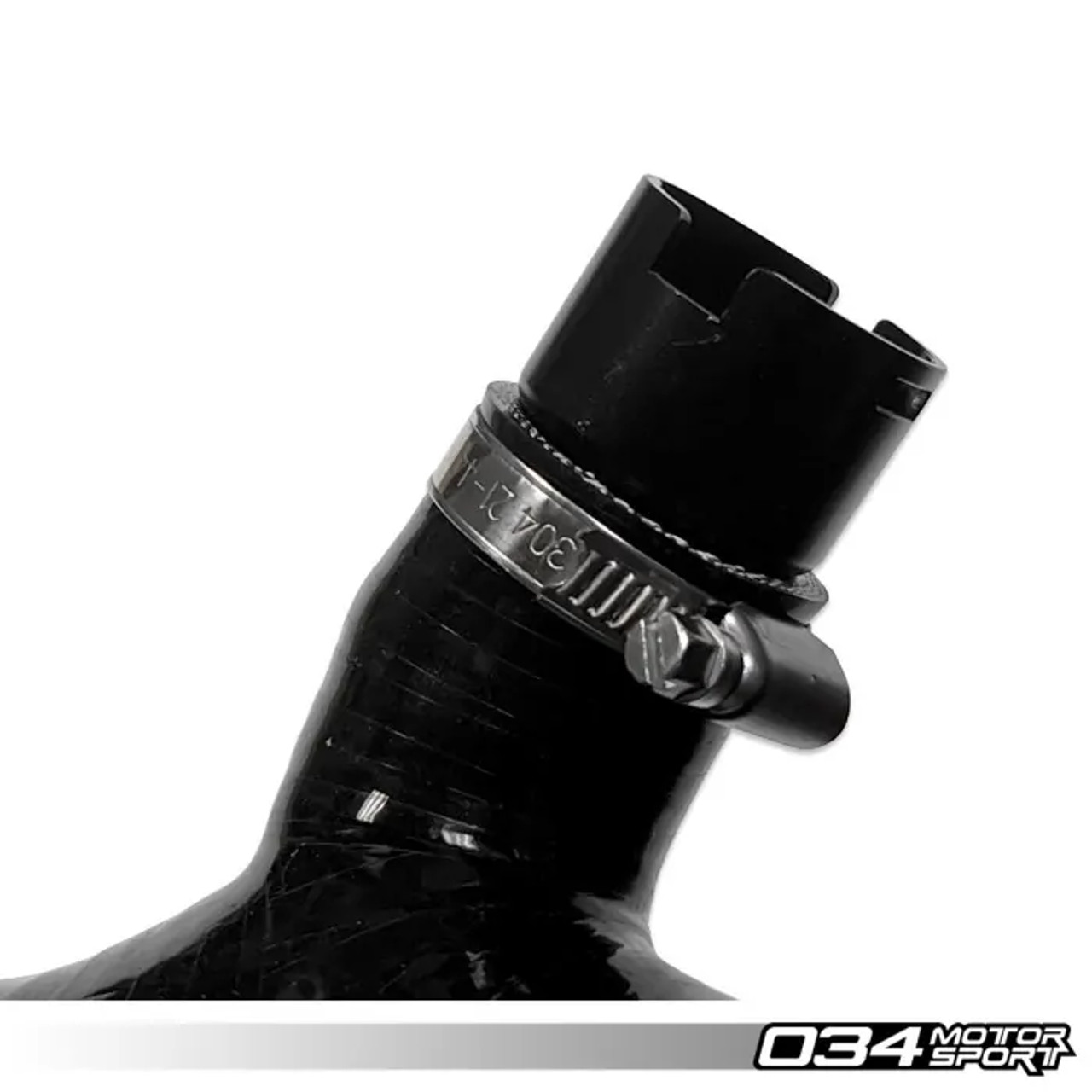

- CNC Machined, Billet Turbo Recirculation Adapter
- Direct Drop-In Replacement of Factory Hose
FLOW BENCH TESTING:
- OE 8Y S3 / Golf R Assembly: 437.38 CFM @ 28 in.H2O
- Insuction Bundle: 535.81 CFM @ 28 in.H2O
- ~ 22.50% Increase

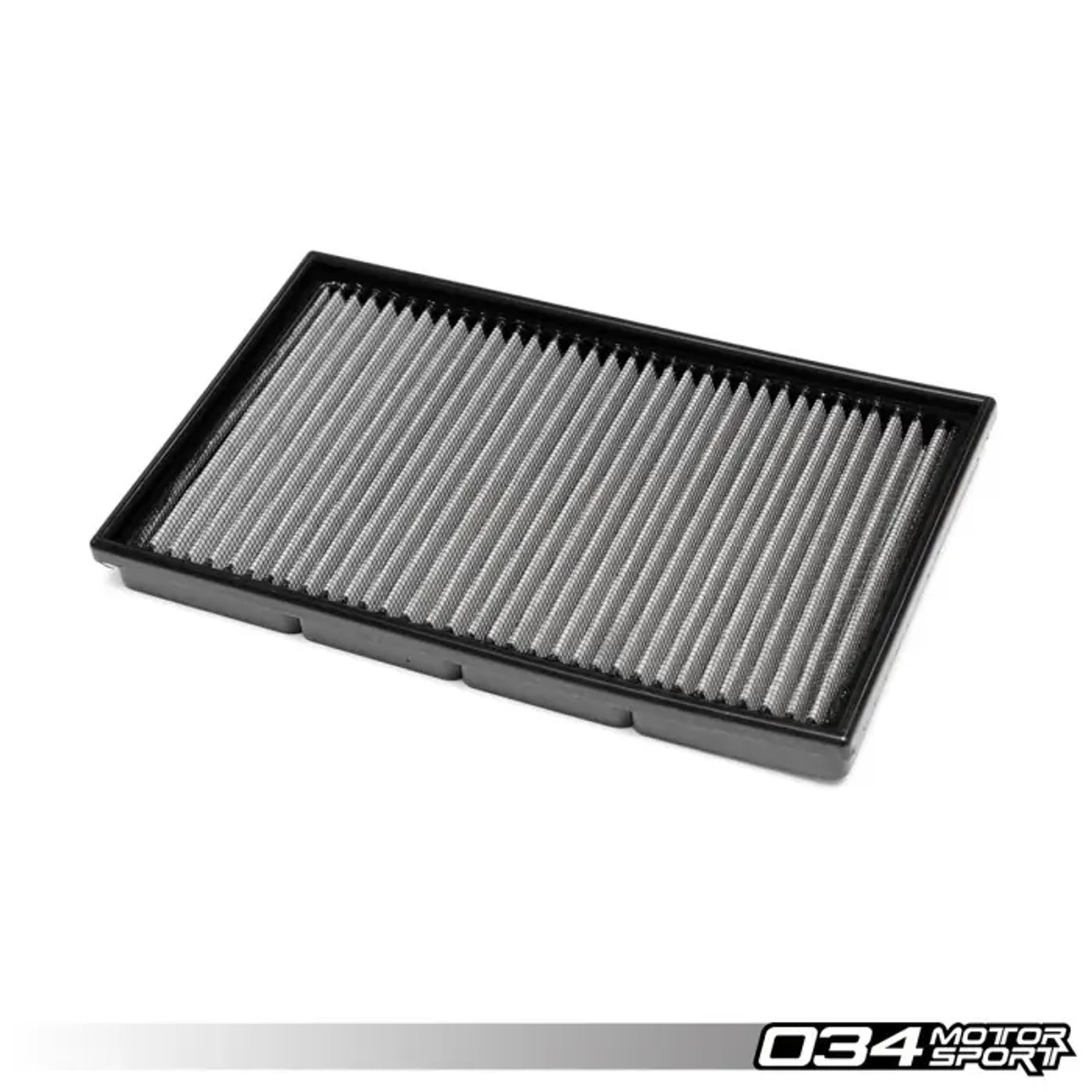

PERFORMANCE DROP-IN PANEL AIR FILTER:
Designed for the factory airbox, the Performance Drop-In Air Filter allows optimal flow over the factory paper filter in conjunction with our turbo inlet hose and pipe.
FEATURES:
- Double-Layered Cotton
- Traps Particles as Small as 5 Microns
- Superior Filtration Over Factory Paper Filter
- Increases Induction & Turbocharger Sounds
- Direct replacement for 5Q0129620
TURBO INLET PIPE:
The 034Motorsport Turbo Inlet Pipe for the 2.0T MQB-Evo, Volkswagen MK8 Golf R, and Audi 8Y S3 offer the highest flow possible to the turbo inlet. TOur Turbo Inlet Pipe is manufactured from 6061-T6 aluminum for maximum airflow, with a machined 6061-T6 billet aluminum compressor inlet flange that perfectly mates to allow smooth air entry into the compressor housing.
The MQB-Evo 2.0T Turbo Inlet Pipe is designed to work with OEM-style turbo inlet hoses. The bead-rolled edge retains the inlet hose securely to the inlet pipe. The final touch is a durable gloss black finish for long-lasting good looks with a laser etched 034 logo to top it all off!

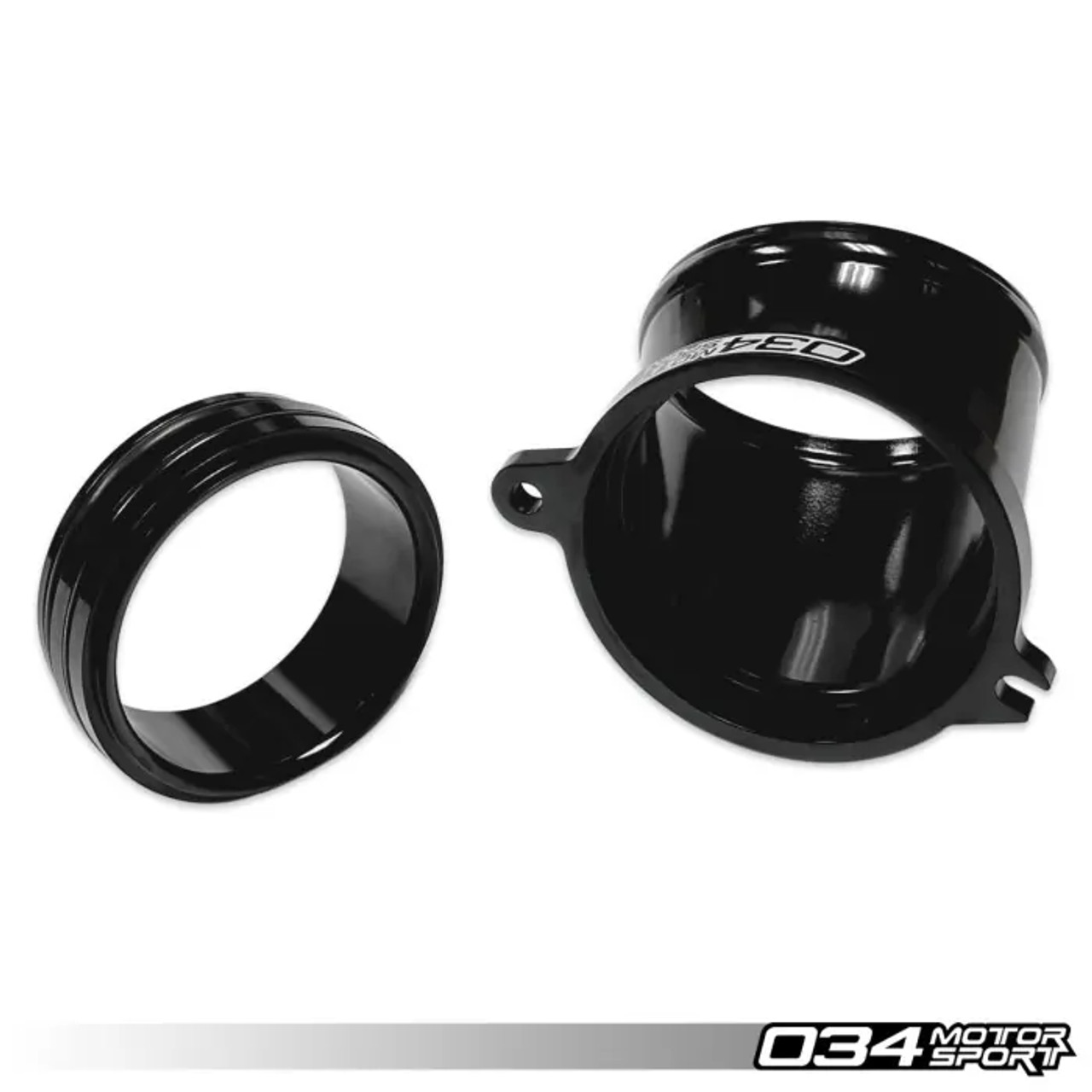

The 034Motorsport Turbo Inlet Pipe utilizes a CNC-machined billet aluminum adapter ring that is perfectly matched to the factory turbo compressor housing. This unique adapter ring is designed to be a smooth air entry between the turbocharger and Turbo Inlet Pipe that utilizes an O-ring to seal the adapter to the inlet. This adapter ring design will allow the 034Motorsport Turbo Inlet Pipe adapt to future turbo upgrades with larger turbo compressor housings with upcoming larger adapter rings.
FEATURES:
- CNC Machined, Billet Aluminum Flange
- Compressor Inlet Flange Adapter Machined for Smooth Airflow Into Compressor Housing
- CNC Machined 6061-T6 Aluminum Turbo Inlet Adapter to Match Turbo Compressor Housing for Maximum Airflow
- Additional Adapter Rings Will Be Available In the Future
- Additional Adapter Rings Will Be Available In the Future
- Proven Power/Torque, and Airflow Gains
- Direct Bolt-on Installation
EMISSIONS DISCLAIMER:
- This product is sold for racing use as well as use on vehicles not registered for on highway use.
- By purchasing this product, you understand that this product is sold for racing use as well as used on vehicles not registered for on highway use, and that it is not legal for use on highway or street vehicles.
