Product Description
034Motorsport Dynamic+ Performance Software ECU & TCU Transmission Tuning Bundle for B8/B8.5 Audi S4/S5, C7 A6/A7, & Q5/SQ5 3.0 TFSI
034Motorsport Performance Software for B8/B8.5 Audi S4/S5/Q5/SQ5 and C7 A6/A7 models equipped with the powerful 3.0 TFSI Supercharged V6 engine is flashed directly through your vehicle's OBD-II port. 034Motorsport’s proprietary calibrations for the Simos 8 ECU safely and effectively increase the power output of the 3.0 TFSI engine. The result is a noticeable improvement in acceleration and throttle response, without any sacrifice in driveability or reliability.
034Motorsport's 3.0 TFSI Performance Software was developed entirely in-house on 034Motorsport's Development B8 Audi S4. The calibrations were then refined on multiple enthusiast-owned B8/B8.5 Audi S4/S5 vehicles before release.
SIMOS 8.4/8.5 COMPATIBILITY:
This software is for use on Simos 8.4/8.5 equipped vehicles only and will not work on vehicles equipped with the CREC engine code (Simos 16). We advise customers, especially RoW, that if you are unsure of your engine code, please inspect your supercharger pulley. If you have a slip-on supercharger pulley, this software will work for you. If your upper Supercharger Pulley is attached with 4 bolts, it is a CREC engine code, meaning that this software will not work. For CREC equipped vehicles, please check out our software for your vehicle here: CLICK HERE
If you have any questions or concerns regarding your engine code before purchasing, please email us at info@itsnotstock.com.
CALIFORNIA AIR RESOURCE BOARD AND EPA EXEMPT FILES:
034Motorsport Performance Software with California Air Resource Board (CARB) exempt Stage 1 files are available for on-road use under Executive Order D-850. 034Motorsport CARB exempt files are designed for residents of emissions-controlled environments and on-road use and are included free with the purchase of 034Motorsport Stage 1 Dynamic+ Tuning. 034Motorsport CARB exempt Performance Software offers the same great performance and reliability, now exempted from California Vehicle Code Section 27156 and the Federal Clean Air Act which prohibit modifications that increase motor vehicle emissions.
To receive your CARB Executive Order sticker, please fill out the following Form after you have completed flashing the CARB exempt tuning file to your ECU.
ADVANCED LAUNCH CONTROL
Once again, 034Motorsport has pushed the boundaries of what is possible for the 3.0T Supercharged engines found in many Audi’s through our Dynamic+ tuning! After extensive development and refinement by our world-class tuning team, all existing and future 034Motorsport tuning customers will have access to all Advanced Launch Control programs.
These features allow you to customize your desired launch RPM on the fly via your cruise control stalk, and run the intercooler pumps and engine fans at full speed below 10kph to allow for full cooling during staging prior to drag racing. This provides a large advantage over factory launching protocols as it results in the coolest possible IATs, and allows the driver to adjust their launch settings to be the most optimal for their conditions.
Note: For DL501/ZF8 equipped cars, a 034Motorsport TCU tune is required to use Advanced Launch Control. For vehicles equipped with a 6-speed manual transmission, a TCU tune is not required for Advanced Launch Control.
DL501 7-SPEED DSG TCU TUNE FEATURES
Flashed directly through your vehicle’s OBD-II port, 034Motorsport’s proprietary calibrations for the DL501 TCU safely and effectively raise the factory transmission's RPM limiter, increasing the available powerband and allowing your car to make use of Stage 1, Stage 2, or Stage 2+ECU Performance ECU Software. The DL501 7-Speed DSG transmission is found in the B8/B8.5 Audi S4 & S5, and some ROW C7 Audi A6/A7s. 034Motorsport Performance DSG Software also increases the shift speed and optimizes the shift points in Drive and Sport modes for better performance and driveability. The result is a noticeable improvement in acceleration, without any sacrifice in comfort or reliability.
Features:- Raised RPM Limit for Use with Stage 1/2/2+ Performance Software
- Compatible with Advanced Launch Control
- Optimized Shift Points in Drive & Sport Mode
- Increased DSG Clutch Clamping Force
- Improved Shift Speed
- Manual Mode Auto Downshift Disabled
- Raised Launch Control Counter Limit (From Factory 200)
- Flashed Directly Via the Factory OBD-II Port - No TCU Removal Needed!
AL551 8-SPEED ZF8 TCU TUNE FEATURES
Flashed directly through your vehicle’s OBD-II port, 034Motorsport’s proprietary calibrations for the AL551 TCU safely and effectively optimize its operation for Stage 1, Stage 2, or Stage 2+ Dynamic+ Performance ECU Software. The AL551 8-Speed ZF8 transmission is found in the B8/B8.5 Audi Q5/SQ5, C7/C7.5 A6/A7, and D4 A8. 034Motorsport Performance ZF8 Software also increases the shift speed and optimizes the shift points in Drive and Sport modes for better performance and driveability. The result is a noticeable improvement in acceleration, without any sacrifice in comfort or reliability..
Features:- Raised RPM Limit for Use with Stage 1/2/2+ Performance Software
- Compatible with Advanced Launch Control
- Optimized Shift Points in Drive & Sport Mode
- Optimized Launch Control
- Improved Shift Speeds
- Flashed Directly Via the Factory OBD-II Port - No TCU Removal Needed!
ECU SOFTWARE FEATURES:
 |
 |
 |
|||
 |
 |
 |
|||
 |
 |
*No-Crackle Files Available Upon Request. Please Email info@itsnotstock.com for More Information* |
 |
034MOTORSPORT 3.0 TFSI SUPERCHARGED SIMOS 8.4 & 8.5 PERFORMANCE SOFTWARE COMPARISON
| STAGE | FUEL | MAX HP | MAX TQ | MAX HP GAIN | MAX TQ GAIN | REV LIMITER* | SPEED LIMITER |
|---|---|---|---|---|---|---|---|
| Stock | 91 Oct (AKI) | 332 HP | 318 TQ | NA | NA | 6,500 RPM | 150 MPH |
| Stage 1 | 91 Oct (AKI) | 430 HP | 374 TQ | 98 HP @ 7,100 RPM | 72 TQ @ 7,100 RPM | 7,200-7,400 RPM | ∞ |
| Stage 1 | 93 Oct (AKI) | 438 HP | 374 TQ | 106 HP @ 7,100 RPM | 78 TQ @ 7,100 RPM | 7,200-7,400 RPM | ∞ |
| Stage 1 | 100 Oct (AKI) | 444 HP | 374 TQ | 112 HP @ 7,100 RPM | 83 TQ @ 7,100 RPM | 7,200-7,400 RPM | ∞ |
| Stage 1 | 104 Oct (AKI) | 453 HP | 378 TQ | 121 HP @ 7,100 RPM | 89 TQ @ 7,100 RPM | 7,200-7,400 RPM | ∞ |
| Stage 1 | E40 Blend (AKI) | Available to Flash | Dyno Figures TBD | *TBD* | *TBD* | 7,200-7,400 RPM | ∞ |
| Stage 2 | 91 Oct (AKI) | 450 HP | 387 TQ | 118 HP @ 7,100 RPM | 87 TQ @ 7,100 RPM | 7,200-7,400 RPM | ∞ |
| Stage 2 | 93 Oct (AKI) | 455 HP | 389 TQ | 123 HP @ 7,100 RPM | 91 TQ @ 7,100 RPM | 7,200-7,400 RPM | ∞ |

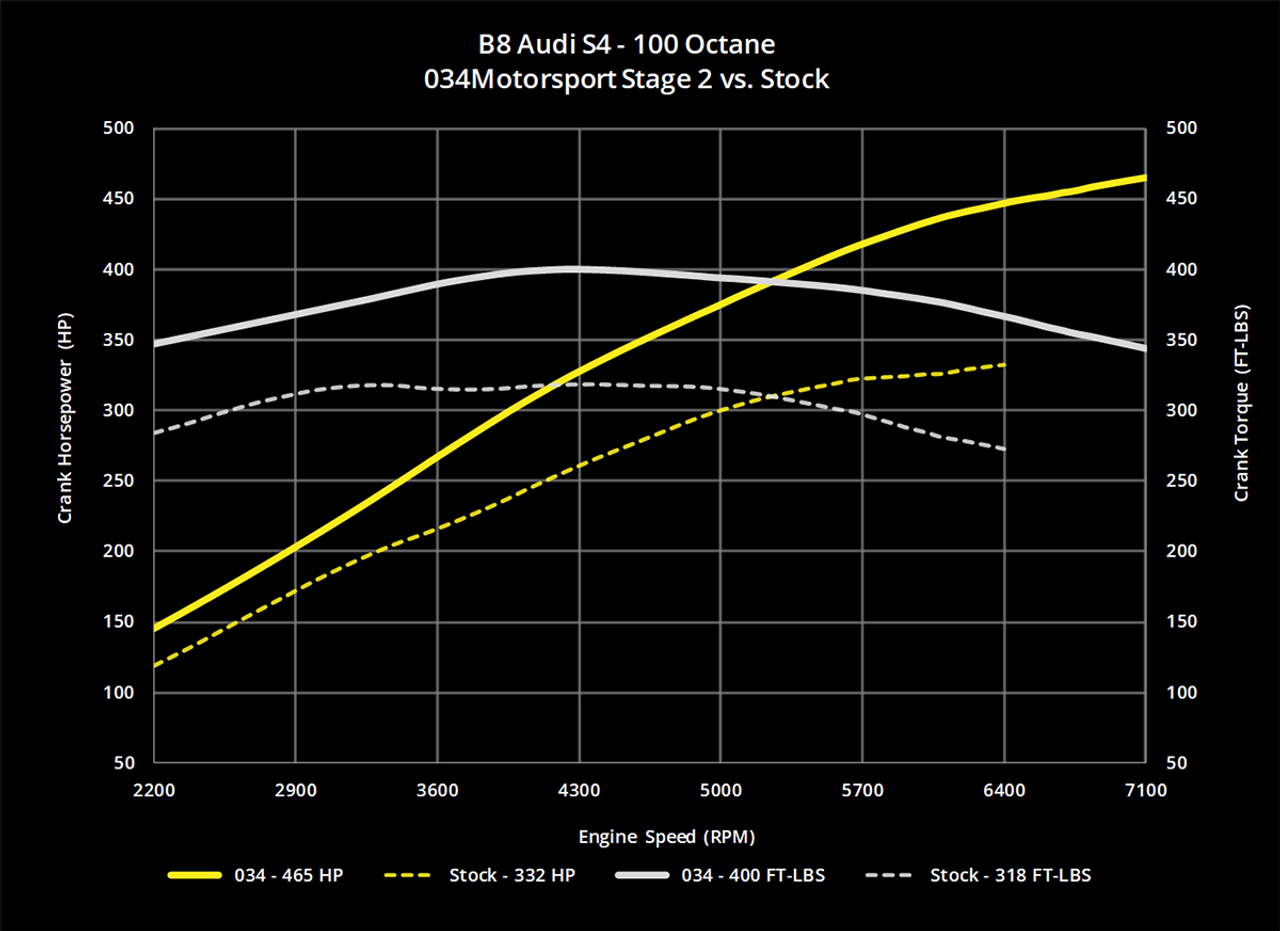

| Stage 2 | 100 Oct (AKI) | 465 HP | 400 TQ | 133 HP @ 7,100 RPM | 98 TQ @ 7,100 RPM | 7,200-7,400 RPM | ∞ |
| Stage 2 | 104 Oct (AKI) | 470 HP | 406 TQ | 138 HP @ 7,100 RPM | 102 TQ @ 7,100 RPM | 7,200-7,400 RPM | ∞ |
| Stage 2 | E40 Blend (AKI) | Available to Flash | Dyno Figures TBD | *TBD* | *TBD* | 7,200-7,400 RPM | ∞ |
| Stage 2+ | 91 Oct (AKI) | Available to Flash | Dyno Figures TBD | *TBD* | *TBD* | 7,400-7,600 RPM | ∞ |
| Stage 2+ | 93 Oct (AKI) | Available to Flash | Dyno Figures TBD | *TBD* | *TBD* | 7,400-7,600 RPM | ∞ |
| Stage 2+ | 100 Oct (AKI) | Available to Flash | Dyno Figures TBD | *TBD* | *TBD* | 7,400-7,600 RPM | ∞ |
| Stage 2+ | 104 Oct (AKI) | Available to Flash | Dyno Figures TBD | *TBD* | *TBD* | 7,400-7,600 RPM | ∞ |

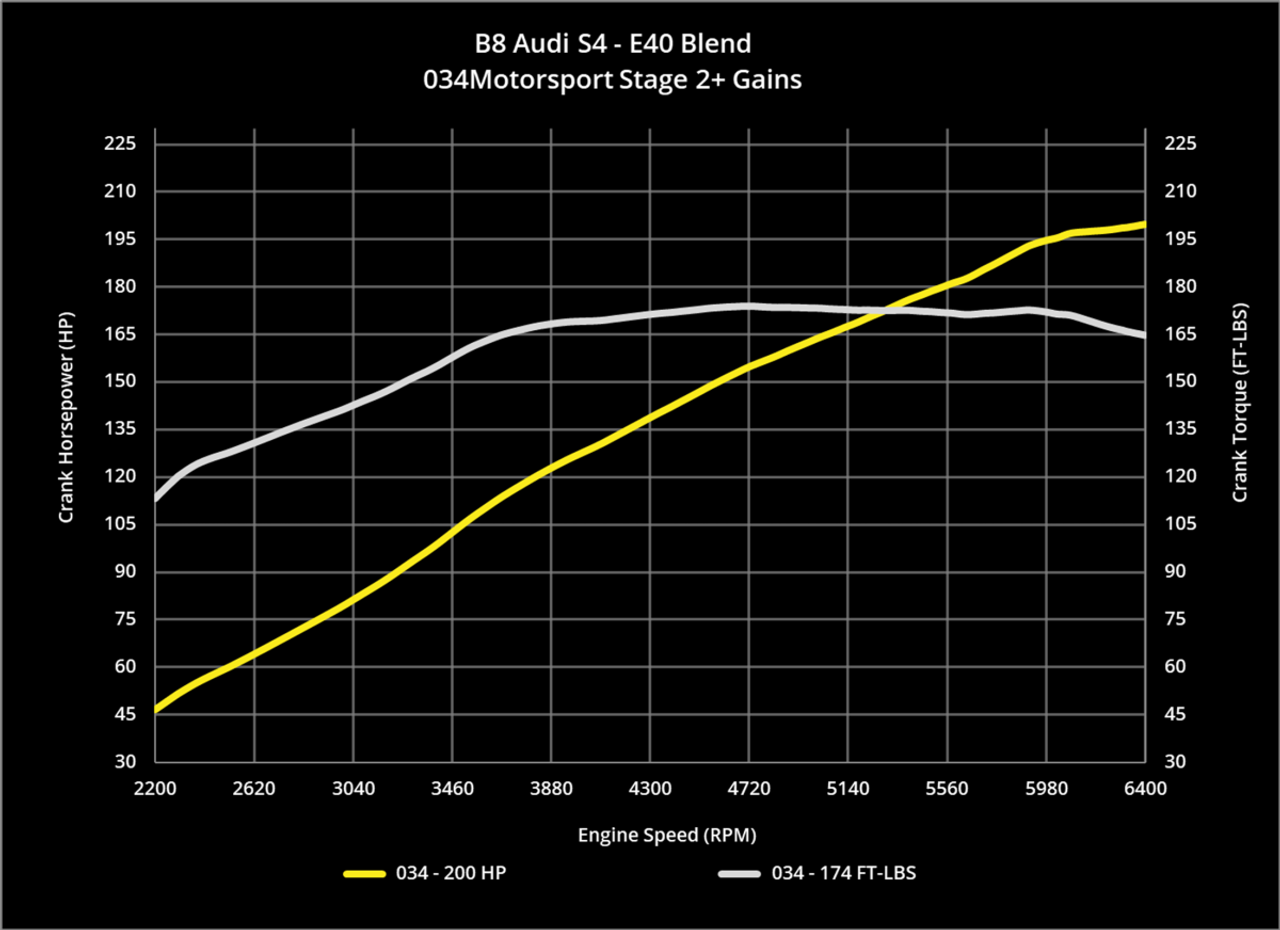

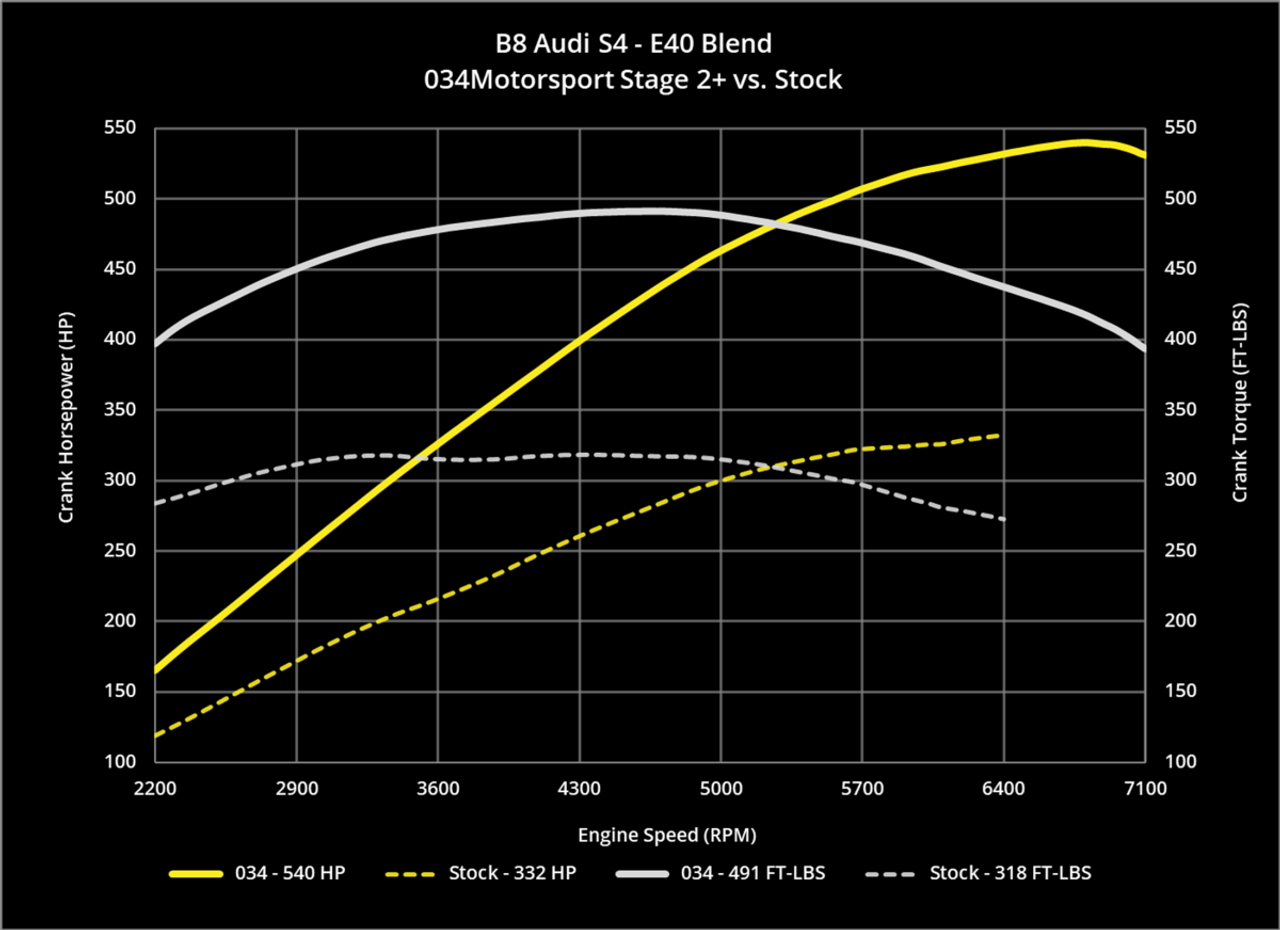

| Stage 2+ | E40 Blend (AKI) | 540 HP | 491 TQ | 208 HP @ 7,100 RPM | 174 TQ @4,720 RPM | 7,400-7,600 RPM | ∞ |
*If you have an automatic or DSG transmission rev limiter increases in the ECU will not change your maximum shift RPM. To increase the shift points you need performance TCU software as well
**Some octane variants are fully developed but have not yet undergone our dyno data colection process and as such the peak increases and power numbers are not yet listed, but you can expect similar gains to the difference of the octanes we have provided the full data collection and dyno information for.
***All octane ratings are in US standard AKI (RON+MON). Some ROW countries such as the UK use a RON octane rating that differs from US Octane ratings. Running the incorrect octane file for your fuel can result in irreversible damage.
034MOTORSPORT 3.0 TFSI SUPERCHARGED SIMOS 8.4 & 8.5 PERFORMANCE SOFTWARE STAGE DESCRIPTIONS
STAGE 1
034Motorsport Stage 1 Performance Software for the B8/B8.5 Audi S4/S5/Q5/SQ5 and C7 A6/A7 3.0 TFSI is engineered to safely increase horsepower and torque with no hardware modifications required. 034Motorsport's proprietary calibrations increase boost by controlling the supercharger bypass, while optimizing timing and fueling maps to extract additional power from the 3.0 TFSI engine.
Stage 1 Performance Software features a higher redline of 7,200 RPM, resulting in a broader powerband and greater peak horsepower figures than available with the factory 7,000 RPM maximum engine speed. In addition to power improvements, 034Motorsport's engineers spent a significant amount of time refining the throttle mapping in both Dynamic and Comfort modes to provide improved throttle response and allow for more precise throttle modulation. Stage 1 Performance Software also enables left foot braking, which allows for further control of the vehicle when driving on track.
034Motorsport 3.0 TFSI Performance Software is flashed via the factory OBD-II port, and does not require any physical modification of the factory ECU. Stage 1 is available in 91 Octane, 93 Octane, 100 Octane, and 104 Octane files. ALL FILES ARE US (MON+RON) RATING, ROW OCTANE RATINGS MAY DIFFER
STAGE 2
034Motorsport Stage 2 Performance Software for the B8/B8.5 Audi S4/S5/Q5/SQ5 and C7 A6/A7 3.0 TFSI is engineered to further increase horsepower and torque output over Stage 1 levels with the addition of 034Motorsport's 3.0 TFSI Supercharger Pulley Upgrade. The Supercharger Pulley Upgrade allows for increased boost pressure from the factory Eaton TVS1320 Supercharger throughout the powerband, while 034Motorsport's proprietary calibrations safely yield additional power from the 3.0 TFSI engine.
Stage 2 Performance Software features a higher redline of 7,200 RPM, resulting in a broader powerband and greater peak horsepower figures than available with the factory 7,000 RPM maximum engine speed. In addition to power improvements, 034Motorsport's engineers spent a significant amount of time refining the throttle mapping in both Dynamic and Comfort modes to provide improved throttle response and allow for more precise throttle modulation. Stage 2 Performance Software also enables left foot braking, which allows for further control of the vehicle when driving on track.
034Motorsport 3.0 TFSI Performance Software is flashed via the factory OBD-II port, and does not require any physical modification of the factory ECU. Stage 2 is available in 91 Octane, 93 Octane, 100 Octane, and 104 Octane files. ALL FILES ARE US (MON+RON) RATING, ROW OCTANE RATINGS MAY DIFFER.
STAGE 2+
034Motorsport Stage 2+ Performance Software for the B8/B8.5 Audi S4/S5/Q5/SQ5 and C7 A6/A7 3.0 TFSI is engineered to further increase horsepower and torque output over Stage 2 levels with the addition of 034Motorsport's 179mm or 190mm Lower Pulley in addition to our upper pulley. The Supercharger Pulley Upgrade allows for increased boost pressure from the factory Eaton TVS1320 Supercharger throughout the powerband, while 034Motorsport's proprietary calibrations safely yield additional power from the 3.0 TFSI engine.
Stage 2+ Performance Software features a higher redline of 7,400 RPM, resulting in a broader powerband and greater peak horsepower figures than available with the factory 7,000 RPM maximum engine speed. In addition to power improvements, 034Motorsport's engineers spent a significant amount of time refining the throttle mapping in both Dynamic and Comfort modes to provide improved throttle response and allow for more precise throttle modulation. Stage 2+ Performance Software also enables left foot braking, which allows for further control of the vehicle when driving on track.
034Motorsport 3.0 TFSI Performance Software is flashed via the factory OBD-II port, and does not require any physical modification of the factory ECU. Stage 2+ is available in 91 Octane, 93 Octane, 100 Octane, 104, and E40 Octane files. ALL FILES ARE US (MON+RON) RATING, ROW OCTANE RATINGS MAY DIFFER
ECU TUNE SUPPORTING MODIFICATION REQUIREMENTS:
| STAGE | REQUIRED MODIFICATIONS | RECOMMENDED MODIFICATIONS |
|---|---|---|
| Stage 1 |
|
|
| Stage 2 |
|
|
| Stage 2+ |
|
|
034MOTORSPORT DYNAMIC+ END USER FLASHING KIT:
034Motorsport's Dynamic+ End User Flashing Kit allows customers to install their 034Motorsport Dynamic+ Performance Software themselves. In addition, End User Flashing allows Dynamic+ Performance Software customers to receive and install software updates and revisions, flash back to stock, or upgrade to the next stage of performance software for their vehicle.
Requirements for End User Flashing:
- Windows 10/11 Laptop with Available USB Port
- Power Supply for Laptop
- Secure Wired (Or Very Stable WiFi) High-Speed Internet Connection
- Battery Charger, 20AMP minimum (CTEK Brand recommended)
- Available Electrical Outlets
034Motorsport End User Flashing Kit Contents:
- 034Motorsport OBD-II Adapter
- USB-A to USB-B Cable
- Carrying Case
- User Credentials (Provided Via Email)
034Motorsport Dynamic+ Flashing Portal:
EMISSIONS DISCLAIMER
- This product is sold for racing use as well as use on vehicles not registered for on highway use.
- By purchasing this product, you understand that this product is sold for racing use as well as used on vehicles not registered for on highway use, and that it is not legal for use on highway or street vehicles.
WELCOME TO DYNAMIC+ TUNING!
034Motorsport's Dynamic+ Performance Software provides reliable horsepower and torque increases through driver-centric calibrations that elevate driving enjoyment and precision. The Dynamic+ Tuning Philosophy emphasizes safety and reliability, with the goal of optimizing power delivery without compromising the longevity of the engine and related components.
Included with the Purchase of Any Dynamic+ Tune:
- Easy Map Switching
- When purchasing any 034Motorsport staged tune, all octanes for that specific tune are included, as is the vehicle’s stock file.
- Switching files is easy when using the Dynamic+ Flashing Portal on your Windows 10/11 computer, with mobile support coming soon!
- World Class Tuning Support
- 034Motorsport’s World Class Tuning Support Team is available 5 days a week standing by to answer and assist with any questions you may have regarding your Dynamic+ Tune, recommended hardware upgrades, or help to diagnose any issues you may have with your vehicle while flashing, or after you’ve flashed.
- Advanced Technological Support
- The 034Motorsport Dynamic+ Tuning Suite also offers enhanced to users to allow users to datalog their Volkswagen or Audi to ensure that it is running properly. This logger is available to be used with our Tuning Support Team and is not designed to be reviewed by the end user.
