Product Description
034Motorsport Density Line Control Arm Kit for Audi B8 & C7
*Please read the fitment notes listed below for purchasing the correct kit for your vehicle*
The factory front control arms are an integral part of the B8/B8.5 Audi A4/S4, A5/S5/RS5 & Q5/SQ5 suspension, but can start wearing out as early as 40,000 miles - especially on enthusiast-owned vehicles which are driven hard on the street or track. As the rubber bushings degrade and ball joints develop play, alignment is compromised and steering becomes less precise.

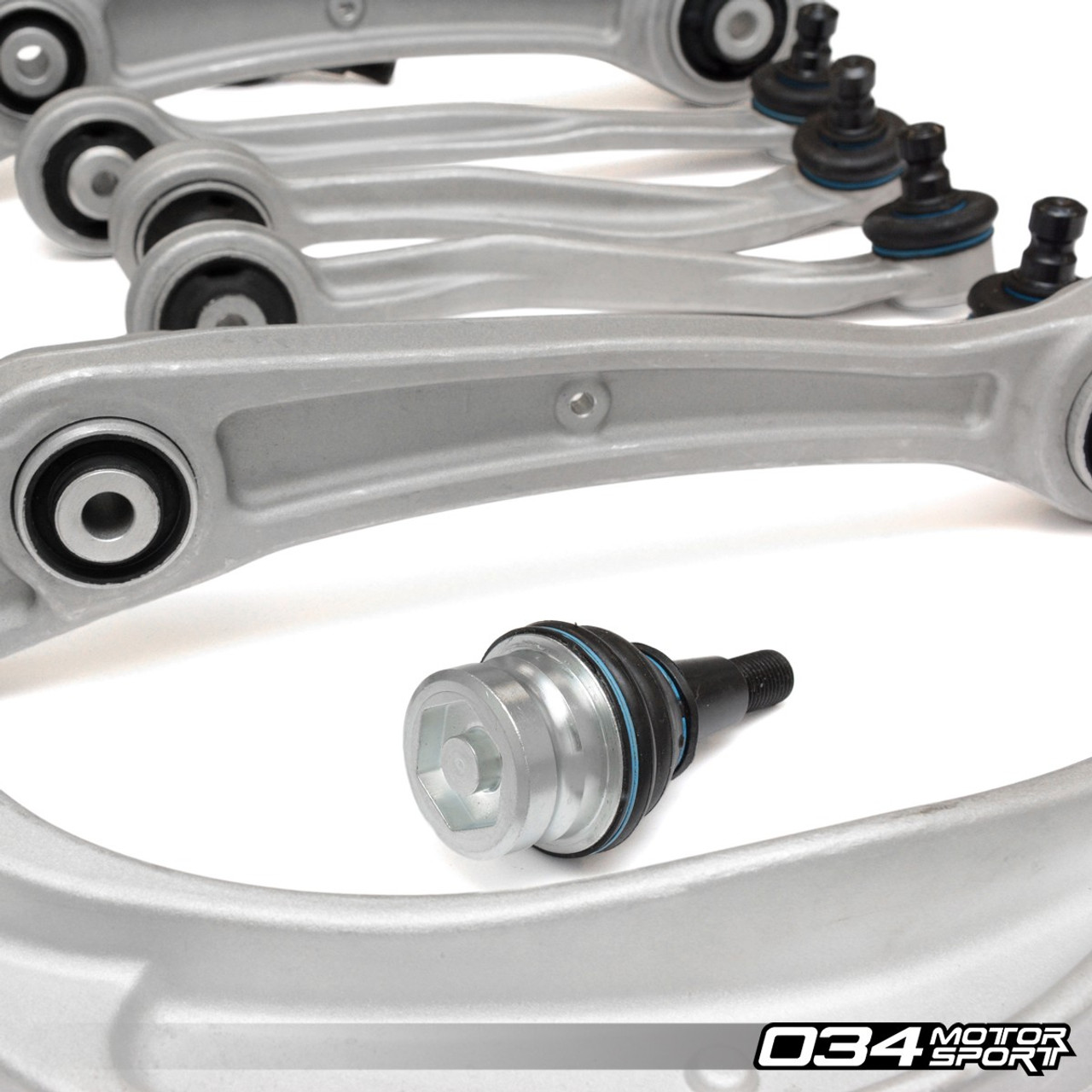

034Motorsport's complete Density Line Control Arm Kit is designed to be a performance replacement for all eight of the factory front upper and lower control arms. Featuring high-durometer rubber bushings and high-quality ball joints, Density Line Control Arms are engineered to limit unwanted deflection in the suspension, resulting in tighter handling and more precise steering response than even brand new factory control arms can offer.
FEATURES:
- Complete, Drop-In Replacement for Factory Control Arms
- Offers Improved Handling Feel & Steering Precision
- High-Durometer Rubber Bushings (65 Durometer)
- Includes New M14 Ball Joints (Upgrade for Early M12 Vehicles)

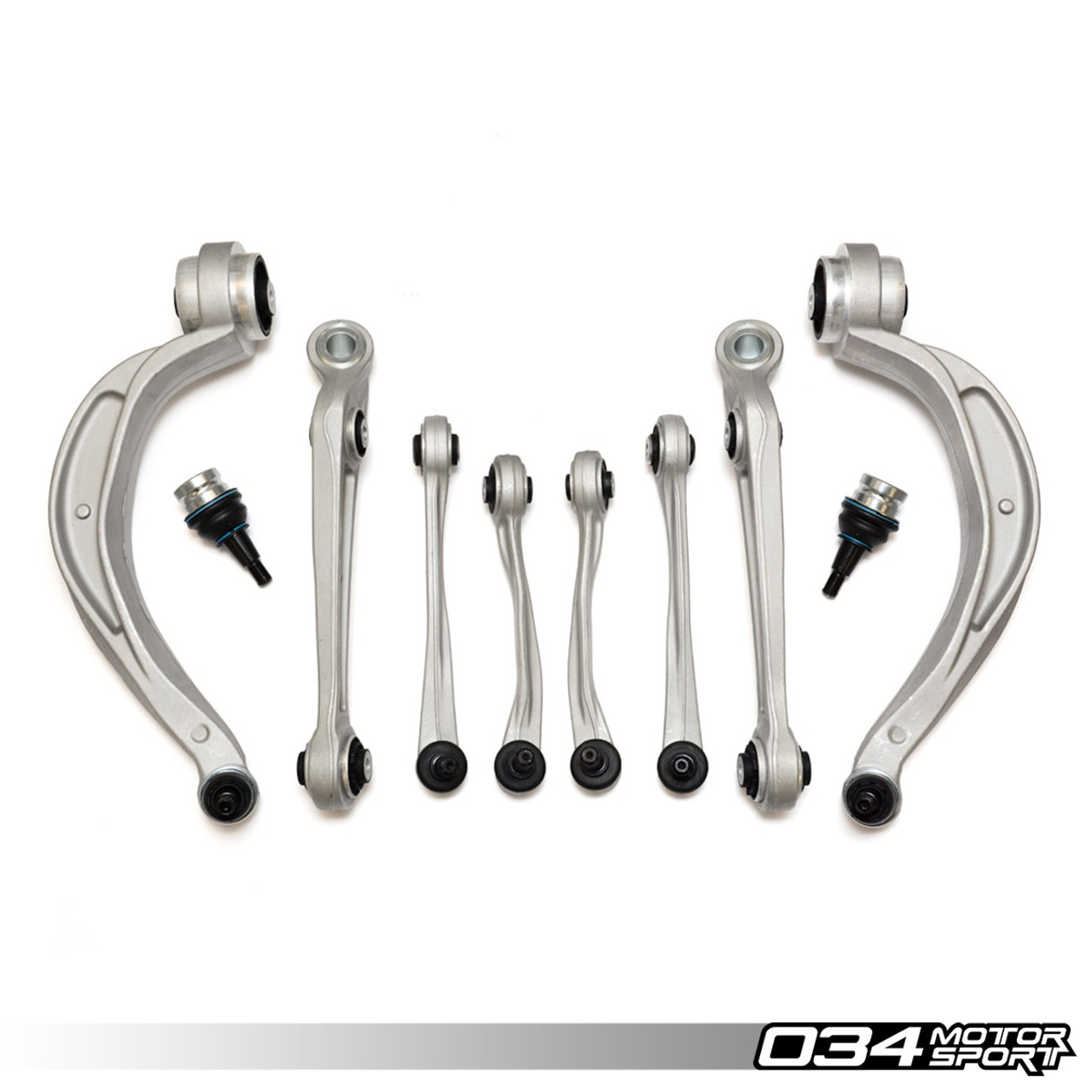

WHAT'S INCLUDED:
- Front Lower Control Arms - Front (Left & Right)
- Front Lower Control Arms - Rear (Left & Right)
- Front Upper Control Arms - Front (Left & Right)
- Front Upper Control Arms - Rear (Left & Right)
- M14 Ball Joints (Pair)
- Installation Hardware Kit
FITMENT:
- 2009 - 2016 Audi A4 (B8/B8.5)
- 2010 - 2017 Audi S4 (B8/B8.5)
- 2008 - 2017 Audi A5 (B8/B8.5)
- 2008 - 2017 Audi S5 (B8/B8.5)
- 2013 - 2017 Audi RS5 (B8.5)
- 2009 - 2017 Audi Q5 (B8/B8.5)
- 2012 - 2017 Audi SQ5 (B8/B8.5)
- 2010 - 2016 Audi Allroad (B8/B8.5)
- 2012 - 2017 Audi A6 (C7/C7.5)
- 2012 - 2017 Audi A7 (C7/C7.5)
- 2012 - 2017 Audi S6 (C7/C7.5)
- 2012 - 2017 Audi S7 (C7/C7.5)
- 2012 - 2018 Audi RS7 (C7/C7.5)
REPLACES:
- 8K0407505A
- 8K0407506A
- 8K0407509A
- 8K0407510A
- 8K0407689G
- 8K0407151D
- 8K0407152D
- 8K0407693E (Late M14)
- 8K0407694E (Late M14)
- 8K0407693E (Early M12)
- 8K0407694E (Early M12)
Please Note:
For B8/B8.5 models, select Early (M12 - Build Dates up to Nov 2, 2009) or Late (M14 - Build Dates from Nov 3, 2009) above to ensure that the correct kit is supplied for your vehicle.
For C7/C7.5 A6/A7, select Early (M12 - Build Dates up to August 15, 2011) or Late (M14 - Build Dates from August 15, 2011).
For C7 S6/S7 vehicles, select Late (M14).
New Outer Tie Rod Ends are sold separately.
Installation Note: It is imperative that the suspension be compressed to static ride height before any suspension pivot bushings are tightened, as per the factory installation procedure. If this is not done, the bushings will tear prematurely as the twisting forces on them will be much higher than is intended. 034Motorsport's Limited Warranty on Density Line products does not cover premature failure due to improper installation or use. We highly recommend professional installation for this product.
Installation Note for C7/C7.5 A6/A7: Since the upper control arms bolt directly to the body instead of a strut mount, the OE upper control arm mounting bolts will have to be reused, or new replacements sourced (N 912 005 01), as the provided bolts are not long enough for this application.
